MANEUVERS — APPENDIX A

Flight Maneuvers

All 39 contest maneuvers, with difficulty coefficients.

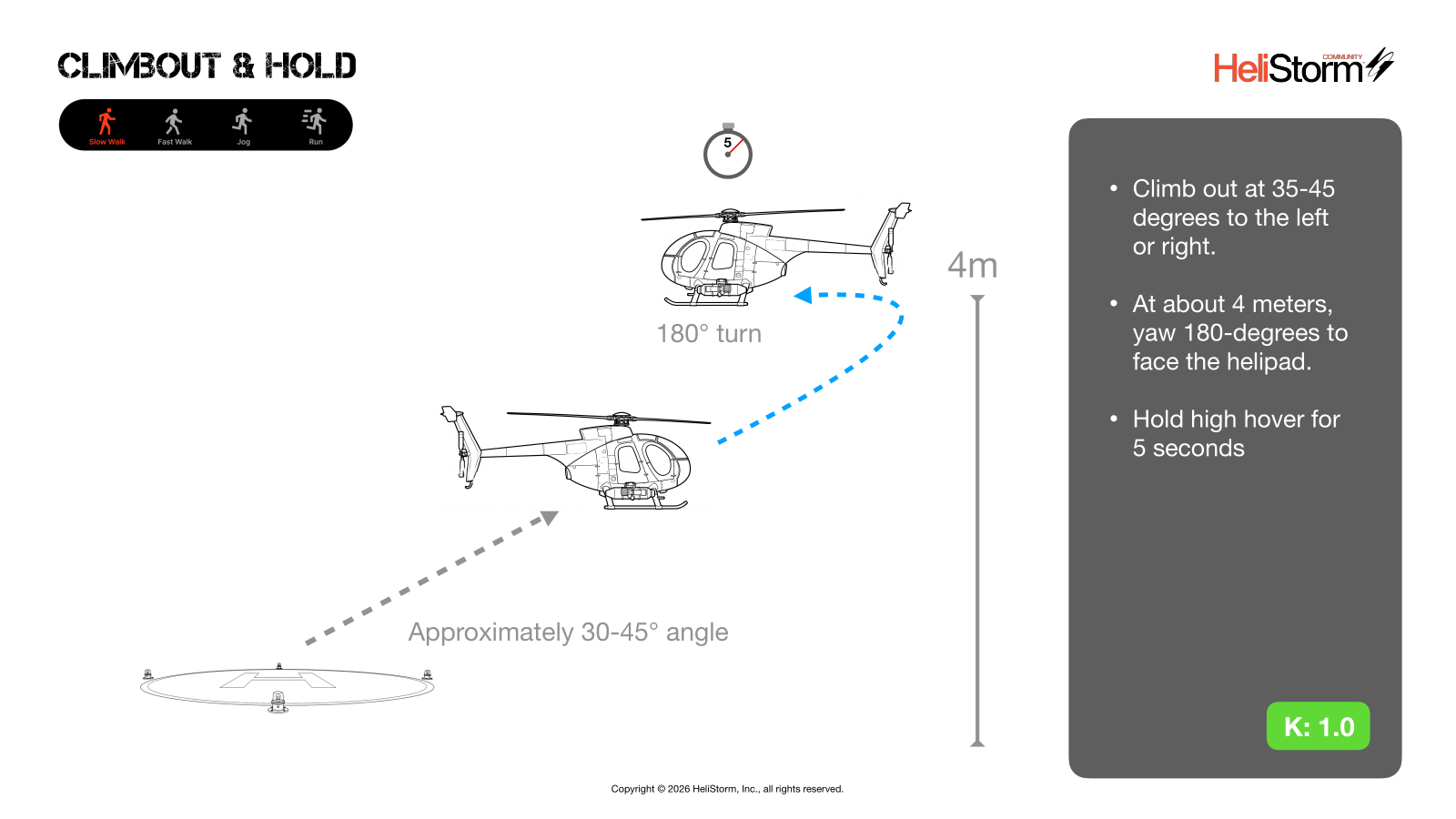

Climbout & Hold diagram

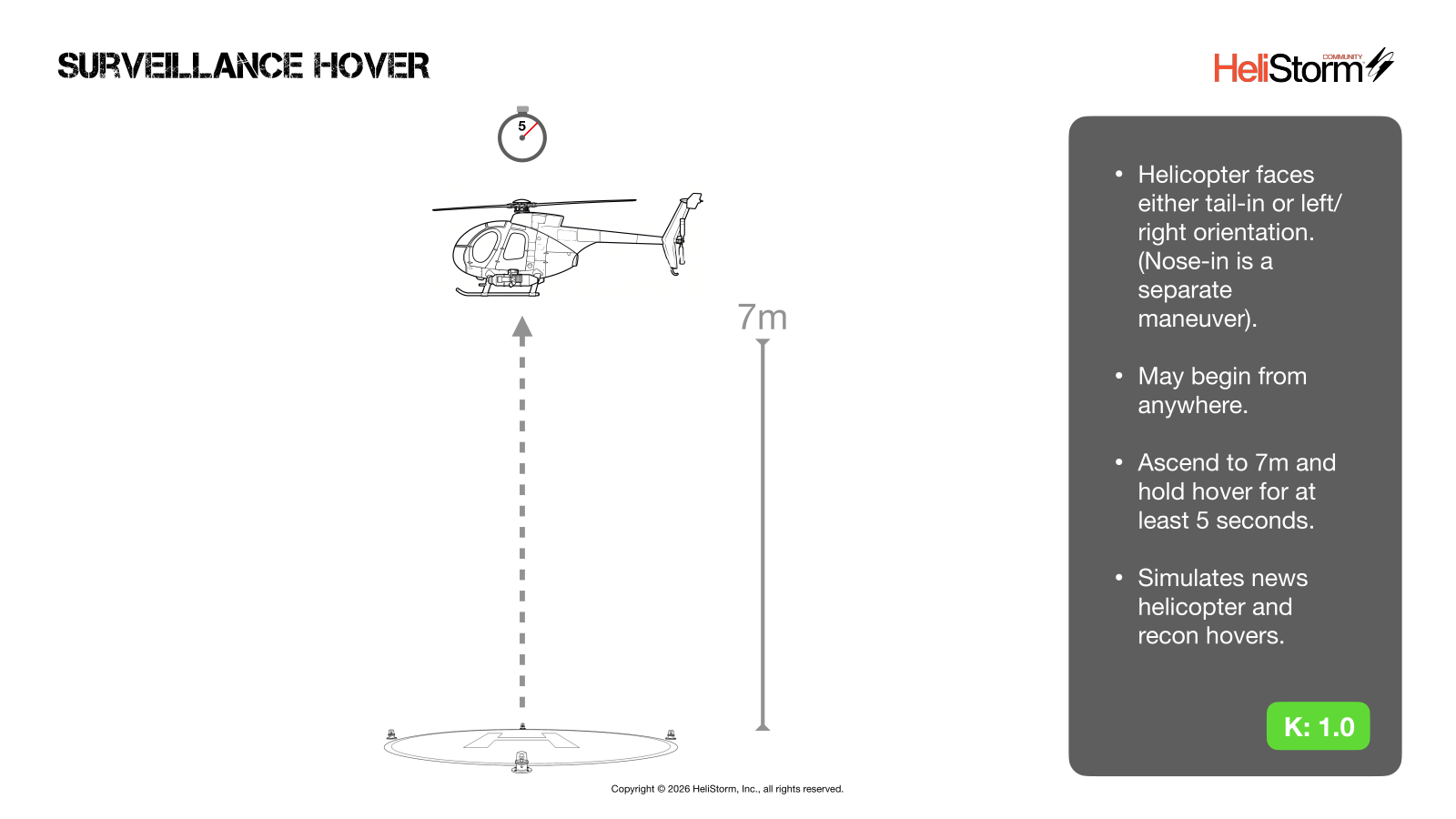

Surveillance Hover diagram

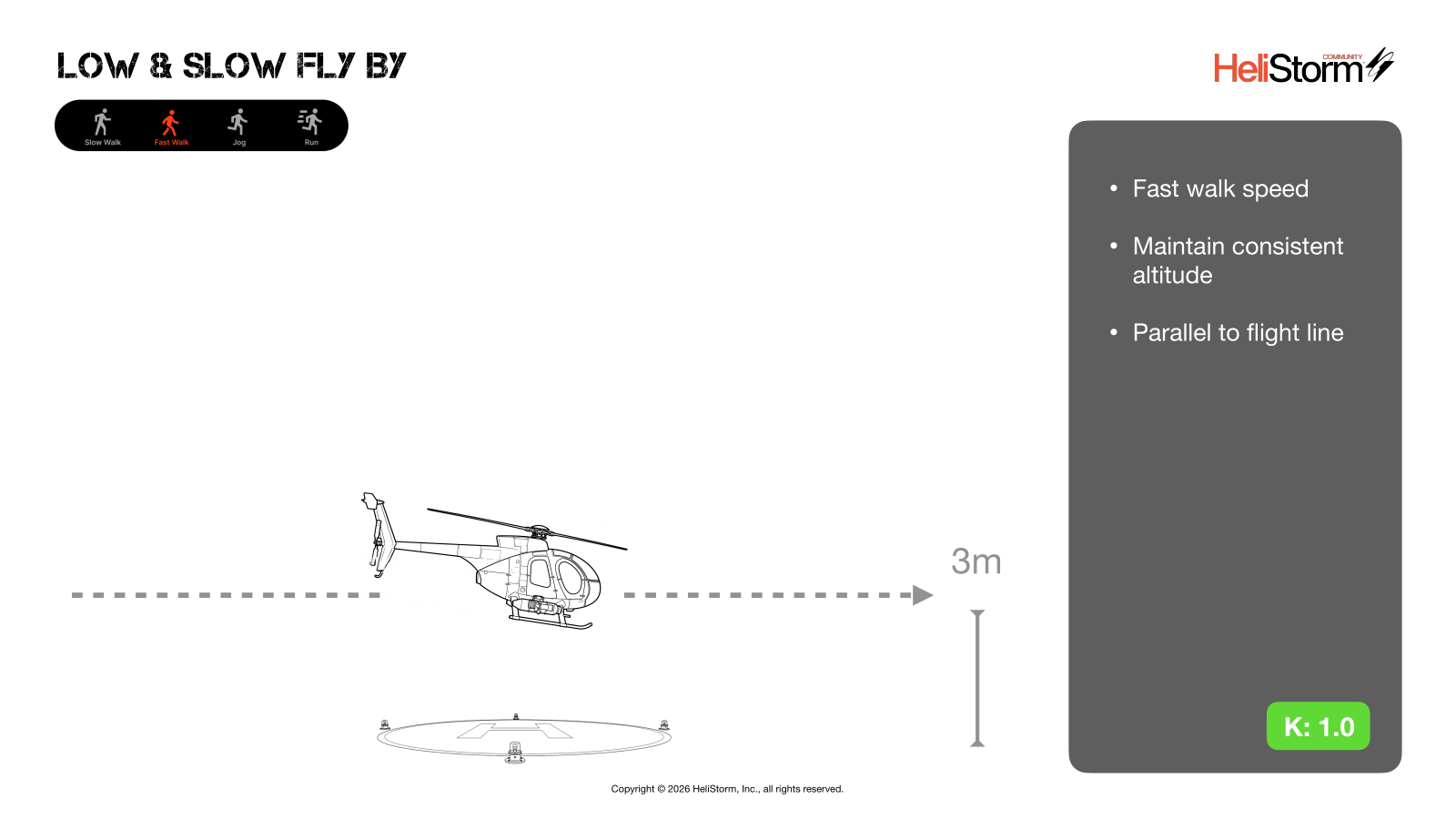

Low & Slow Fly By diagram

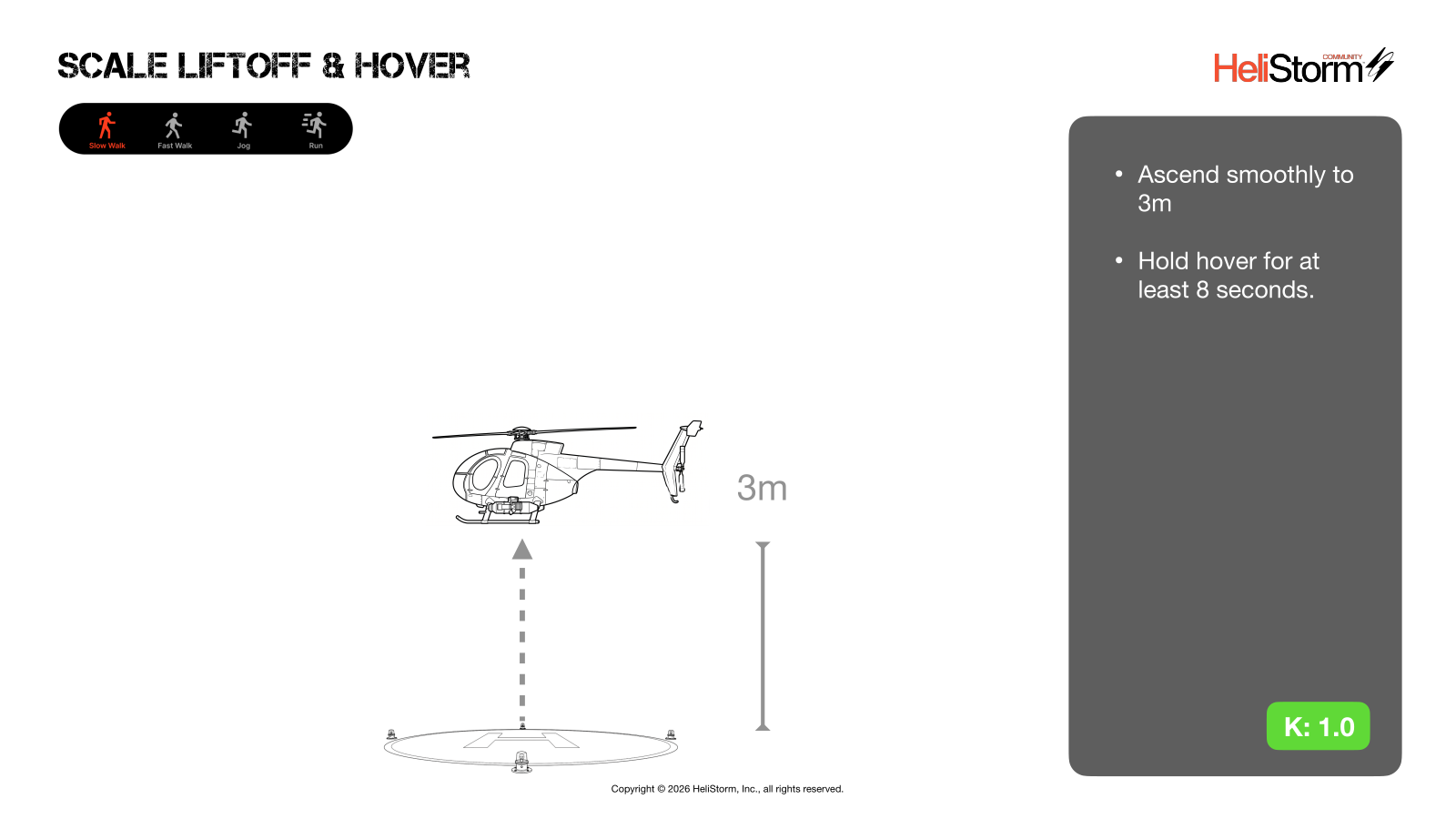

Scale Liftoff & Hover diagram

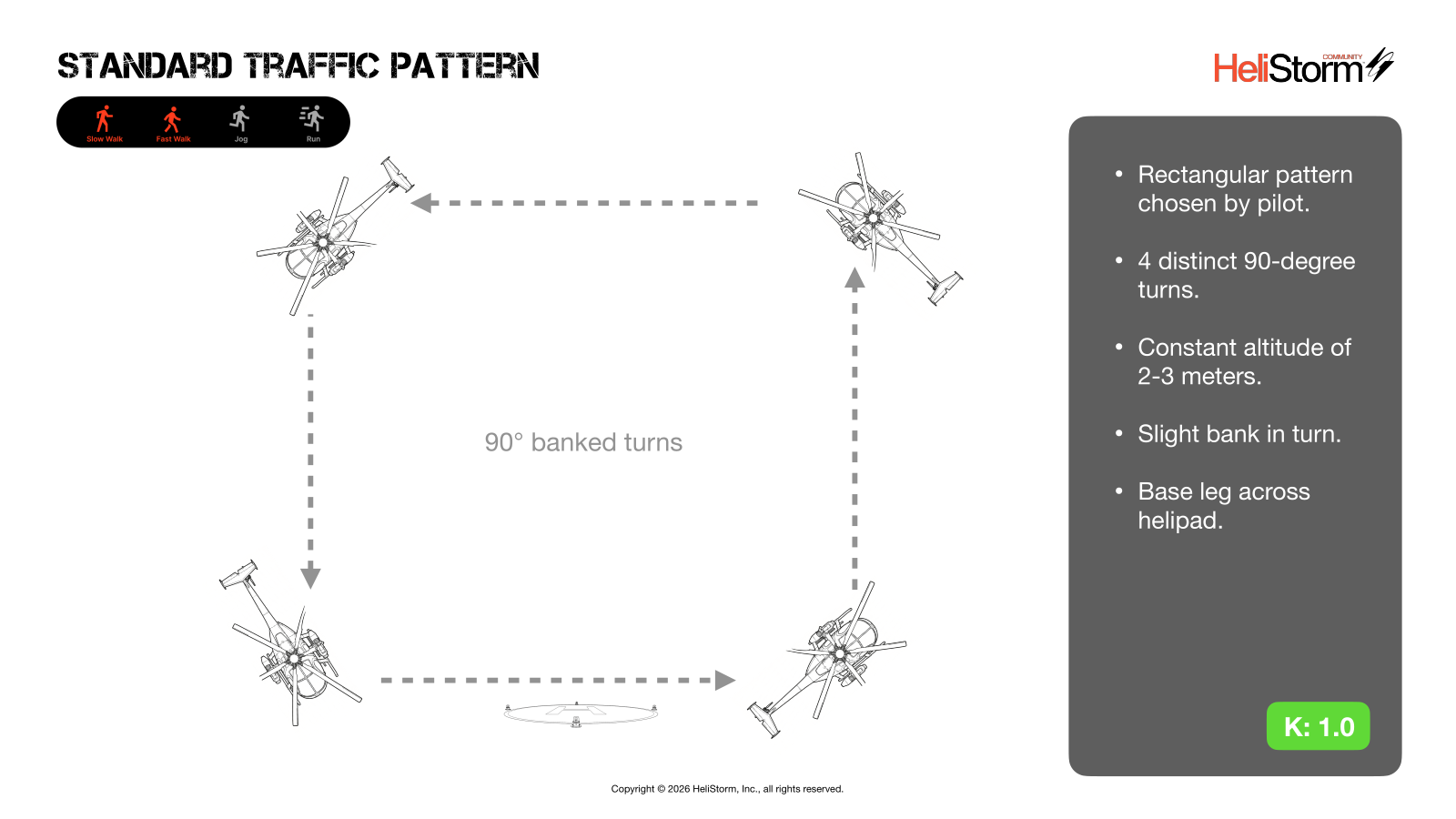

Standard Traffic Pattern diagram

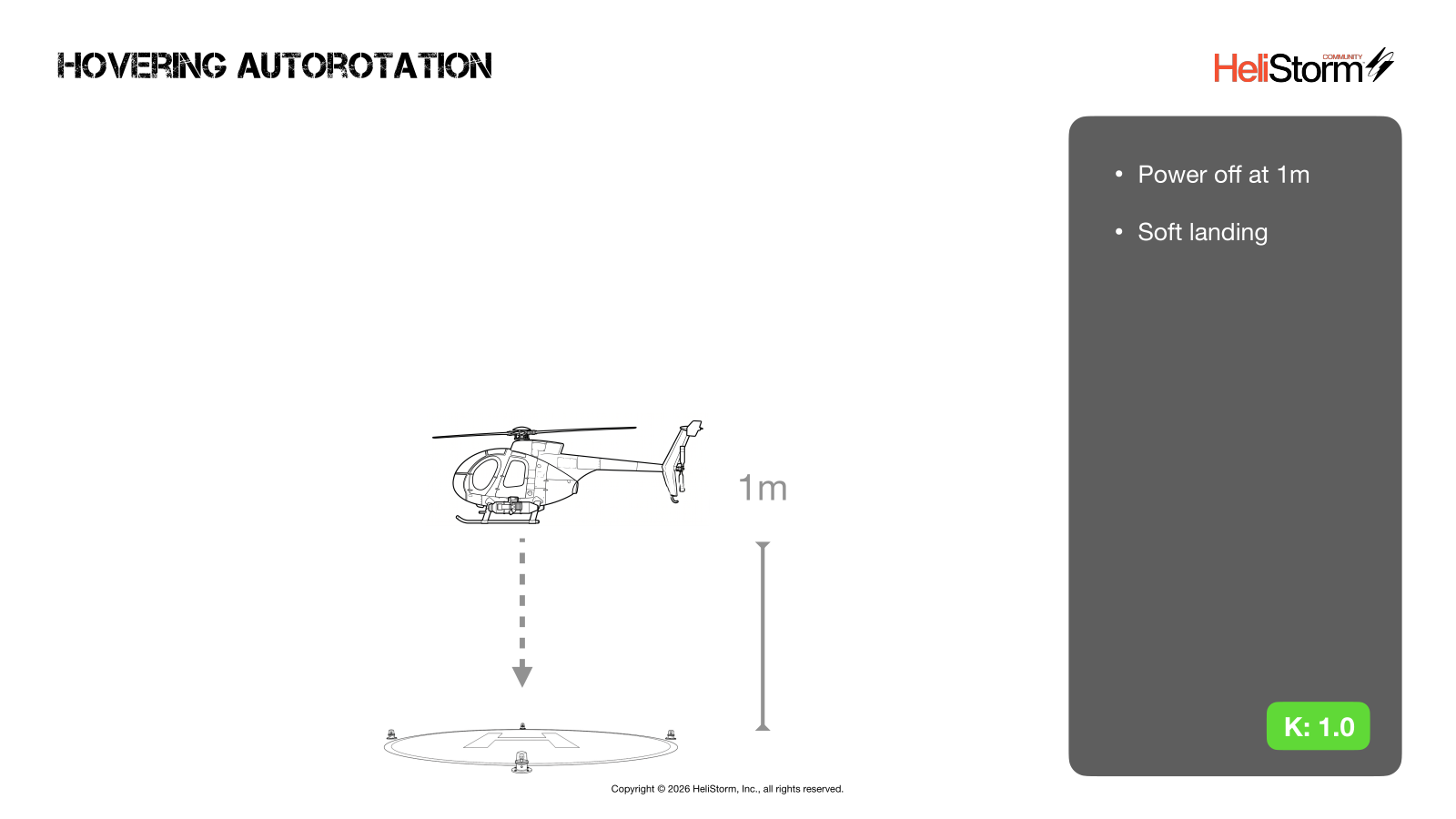

Hovering Autorotation diagram

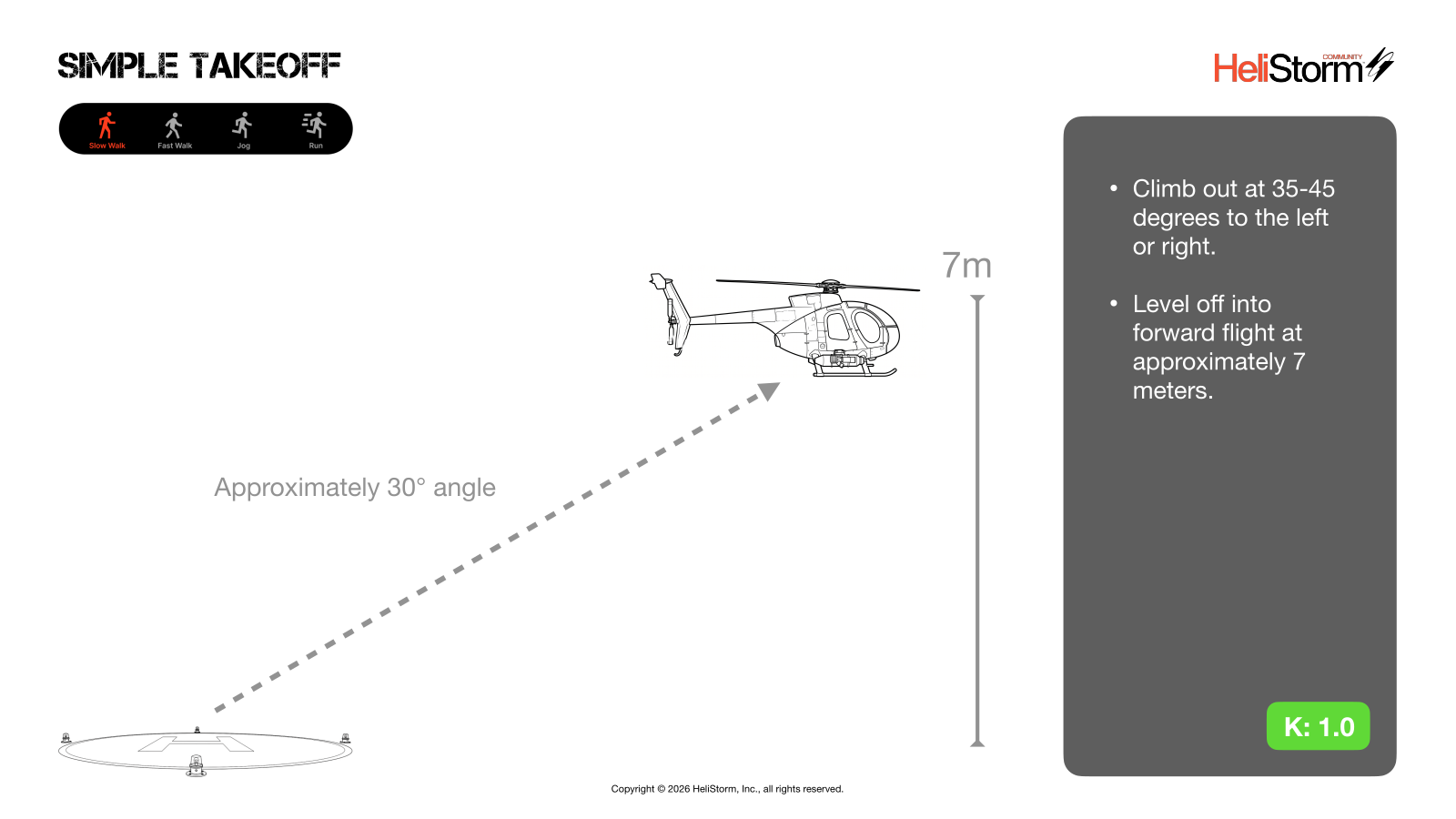

Simple Takeoff diagram

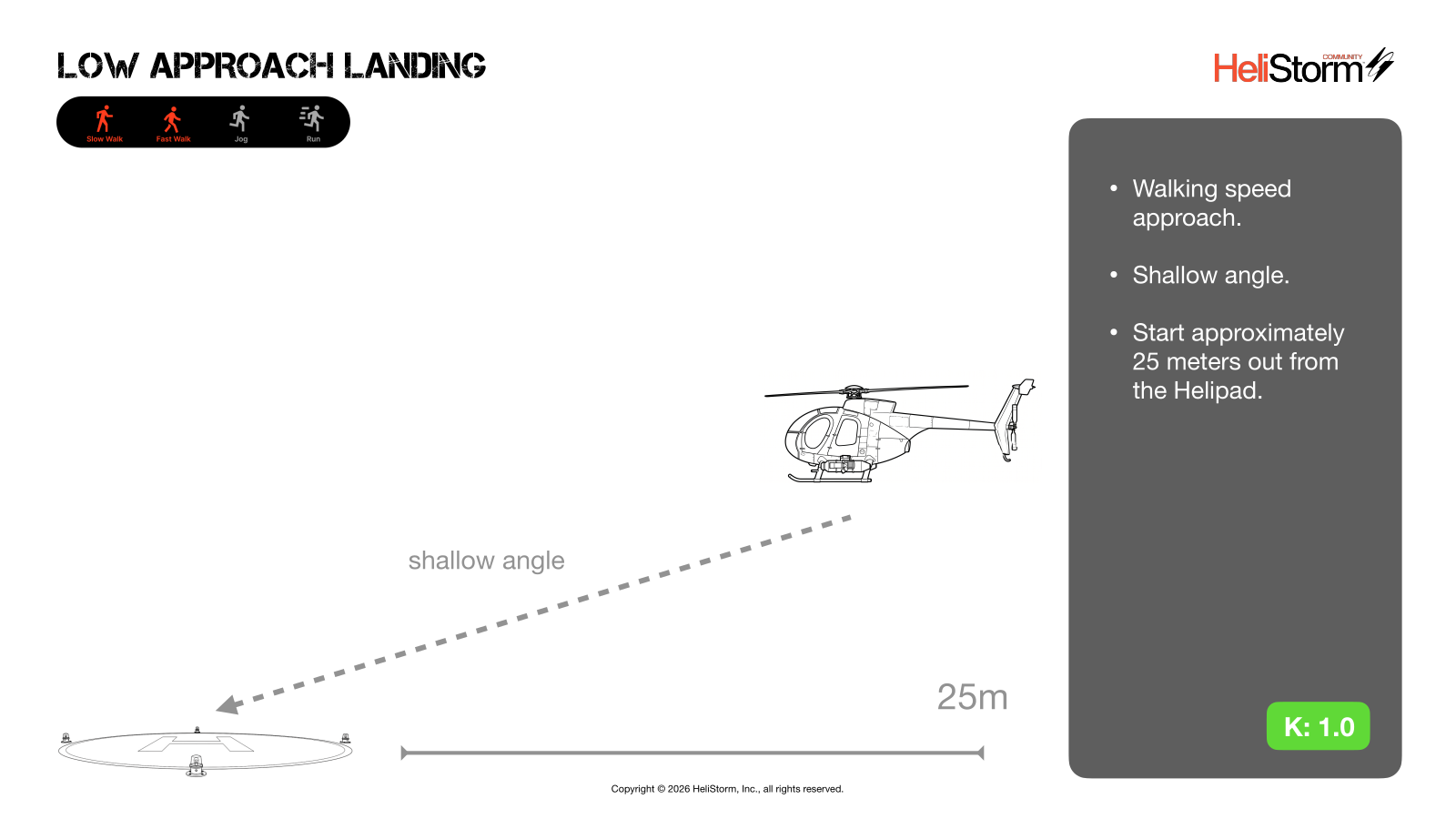

Low Approach Landing diagram

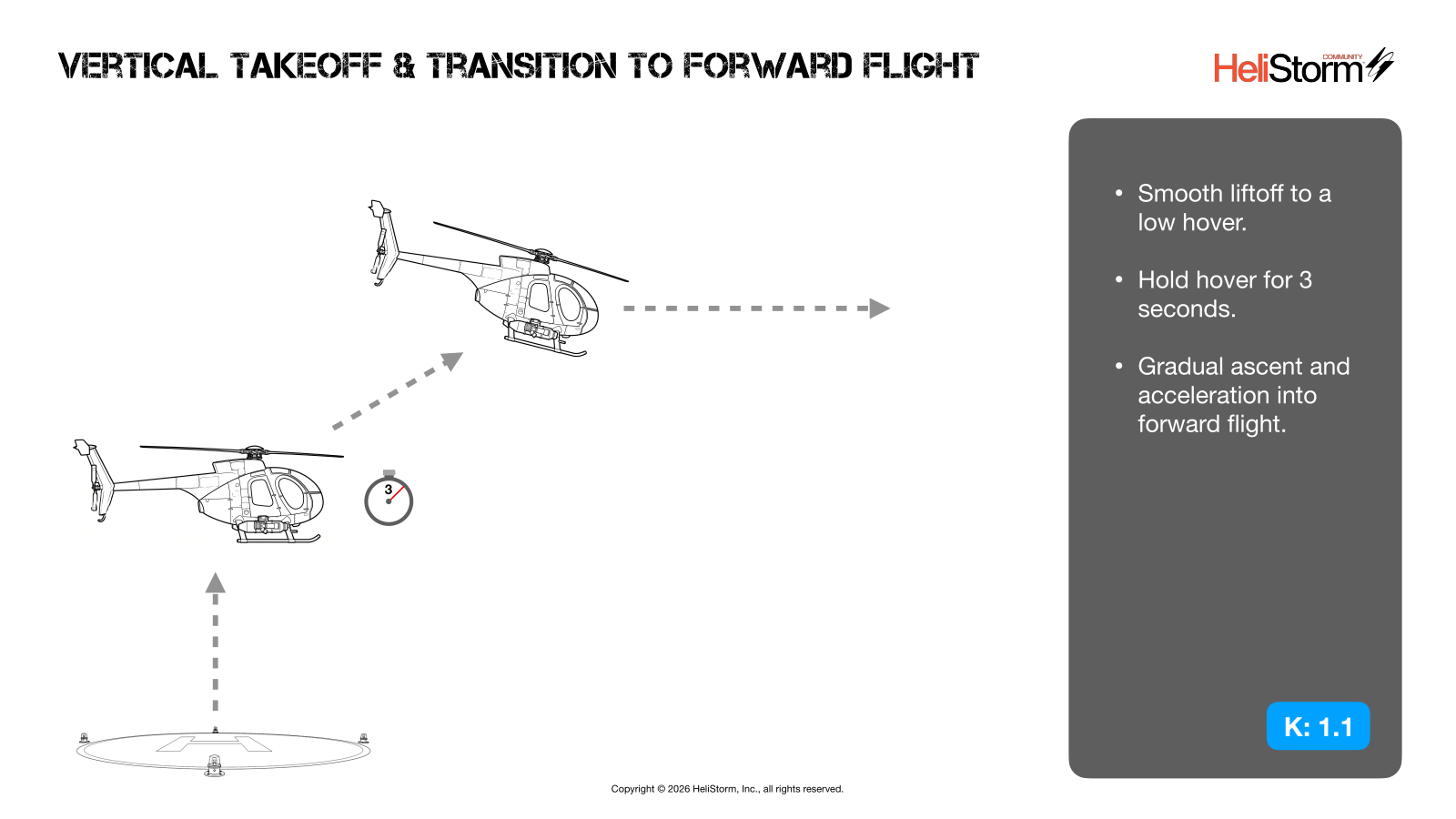

Vertical Takeoff & Transition to Forward Flight diagram
Backout Turn diagram

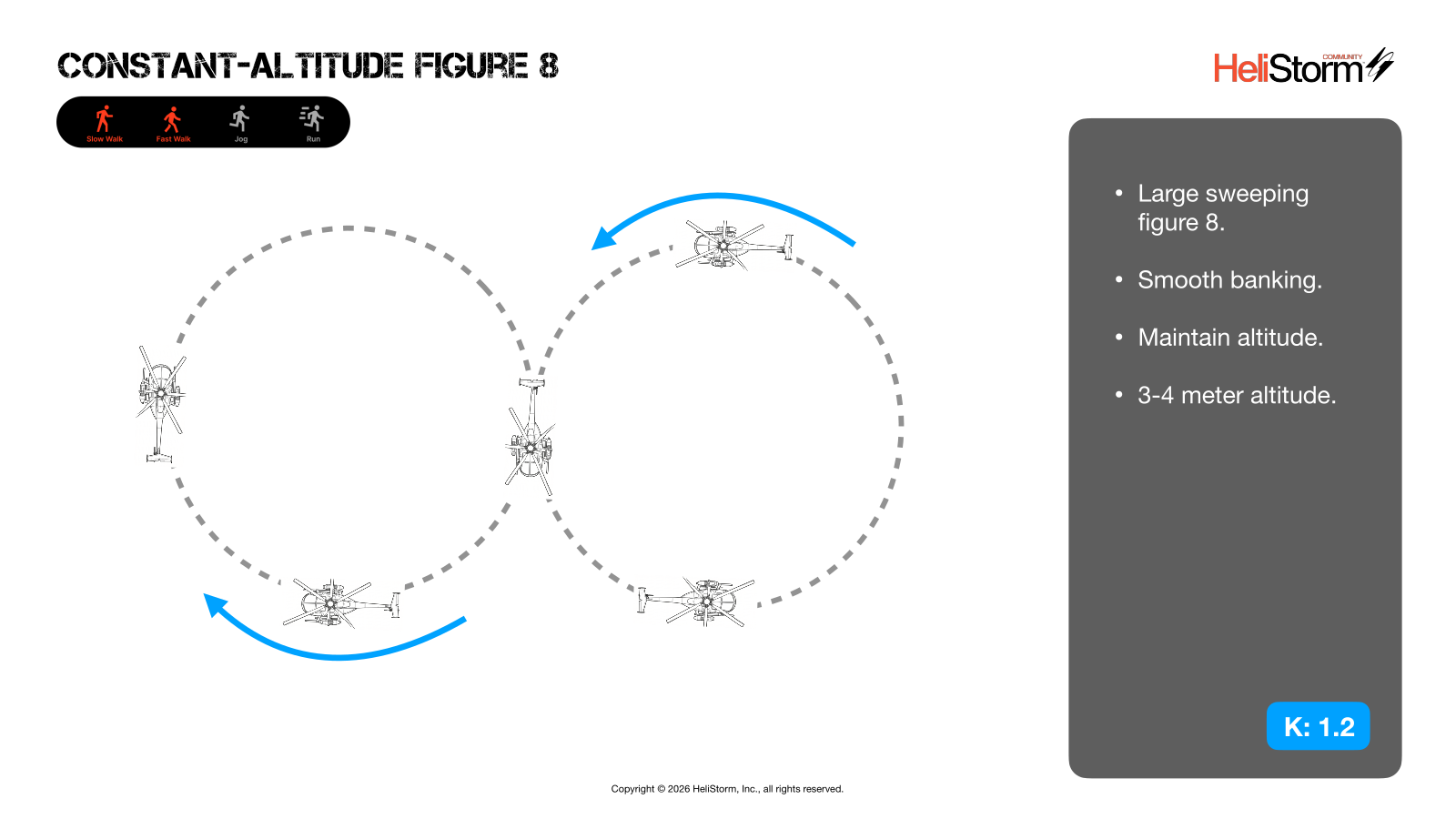

Constant-Altitude Figure 8 diagram

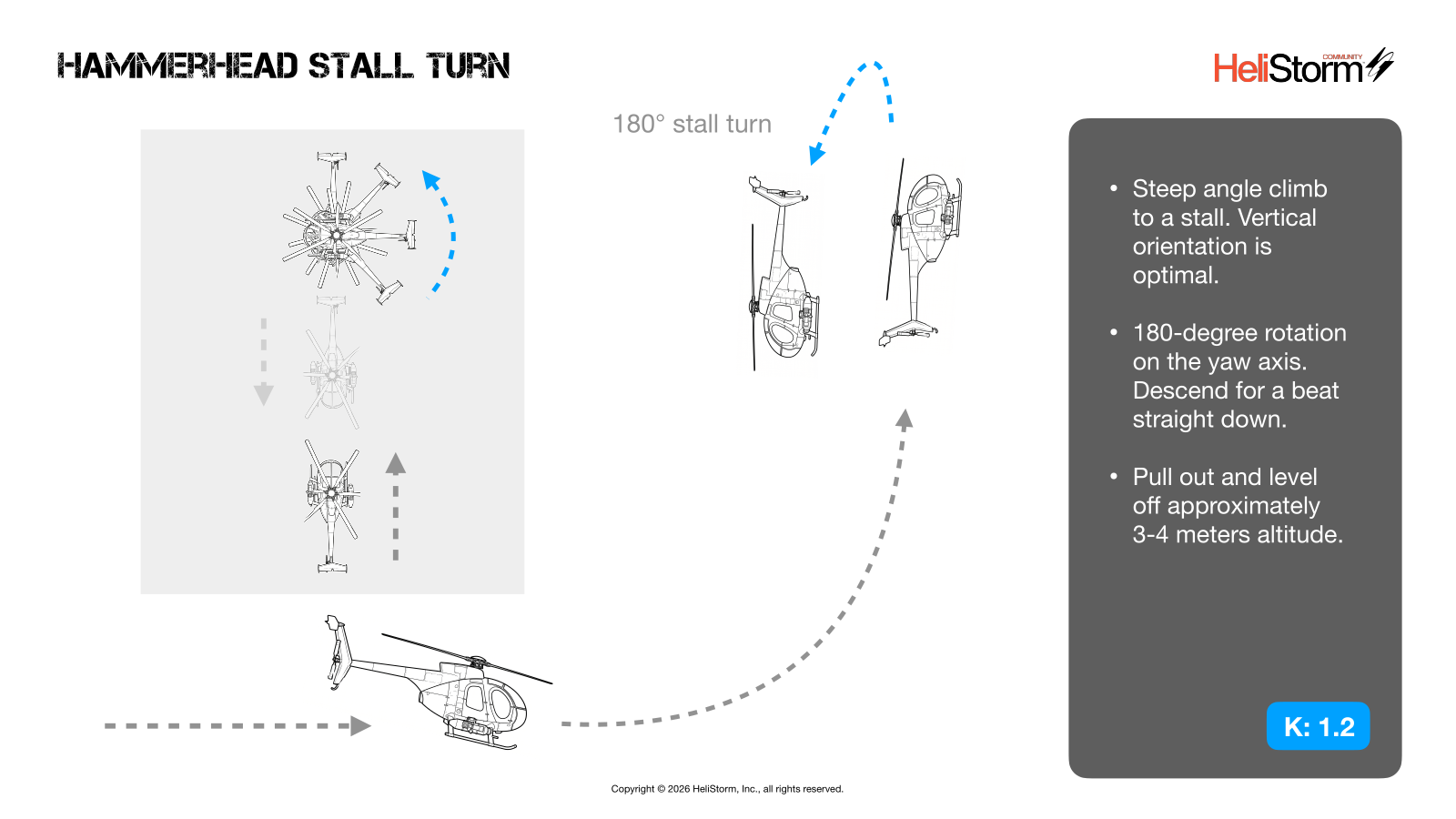

Hammerhead Stall Turn diagram

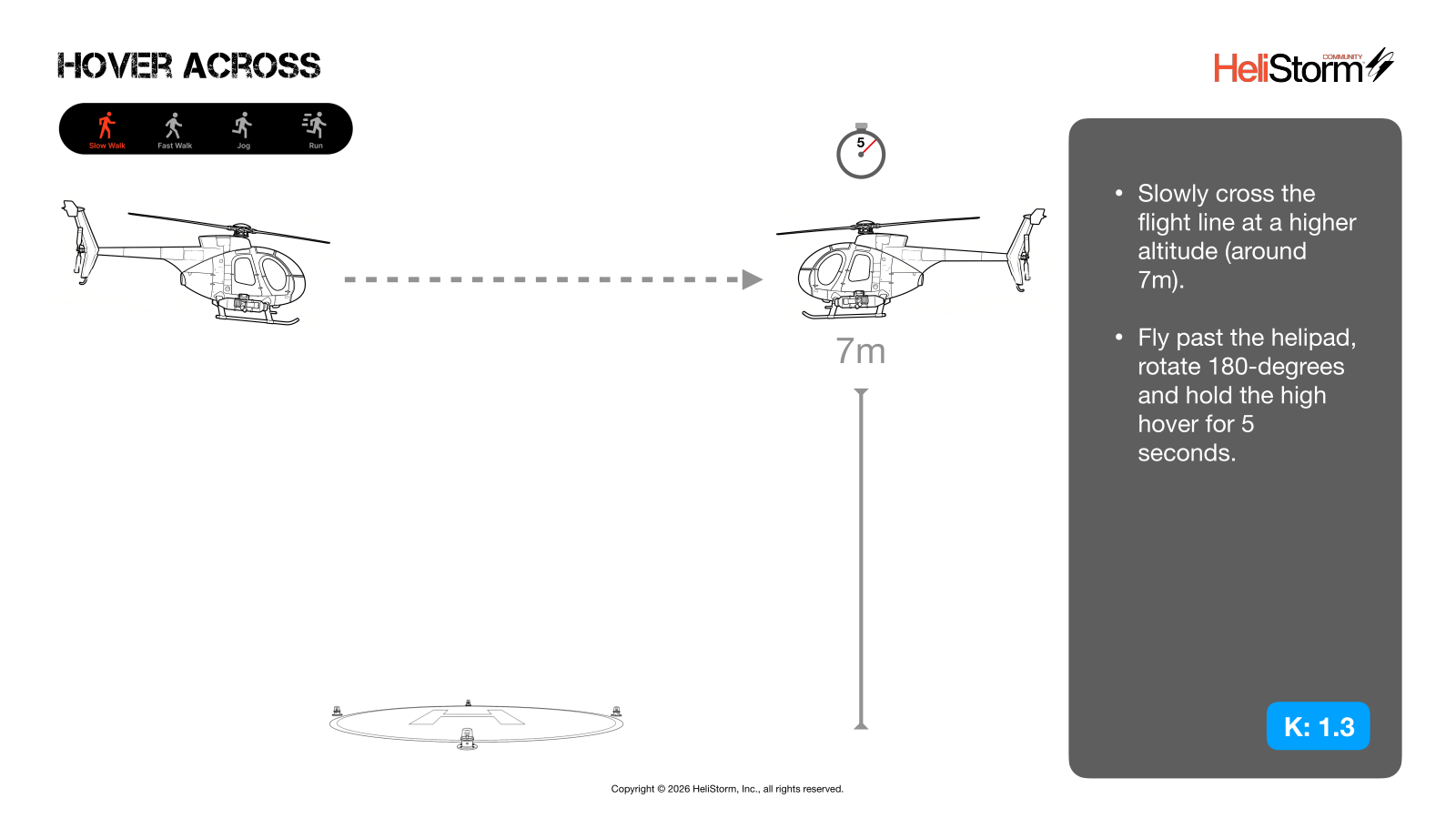

Hover Across diagram

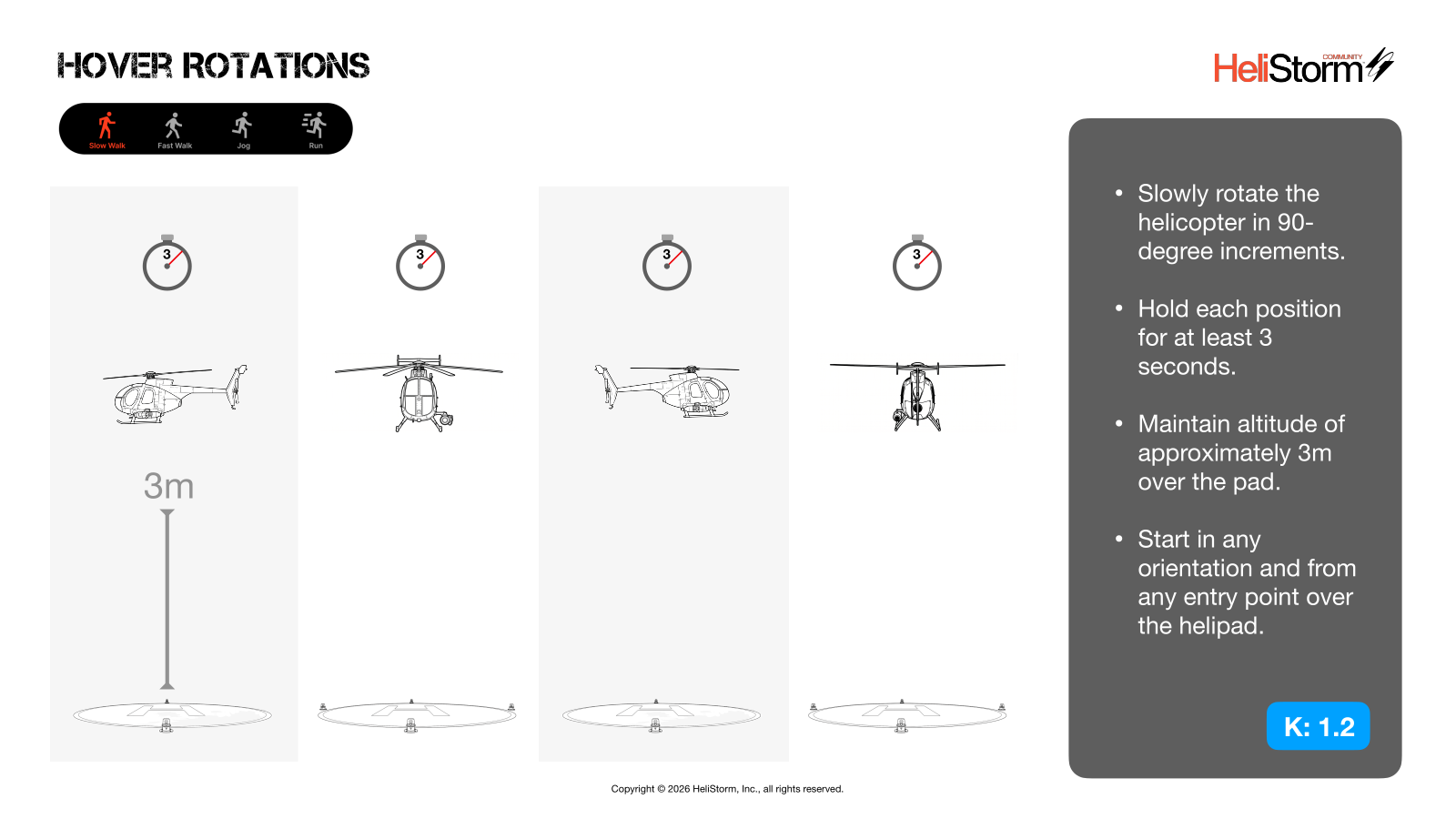

Hover Rotations diagram

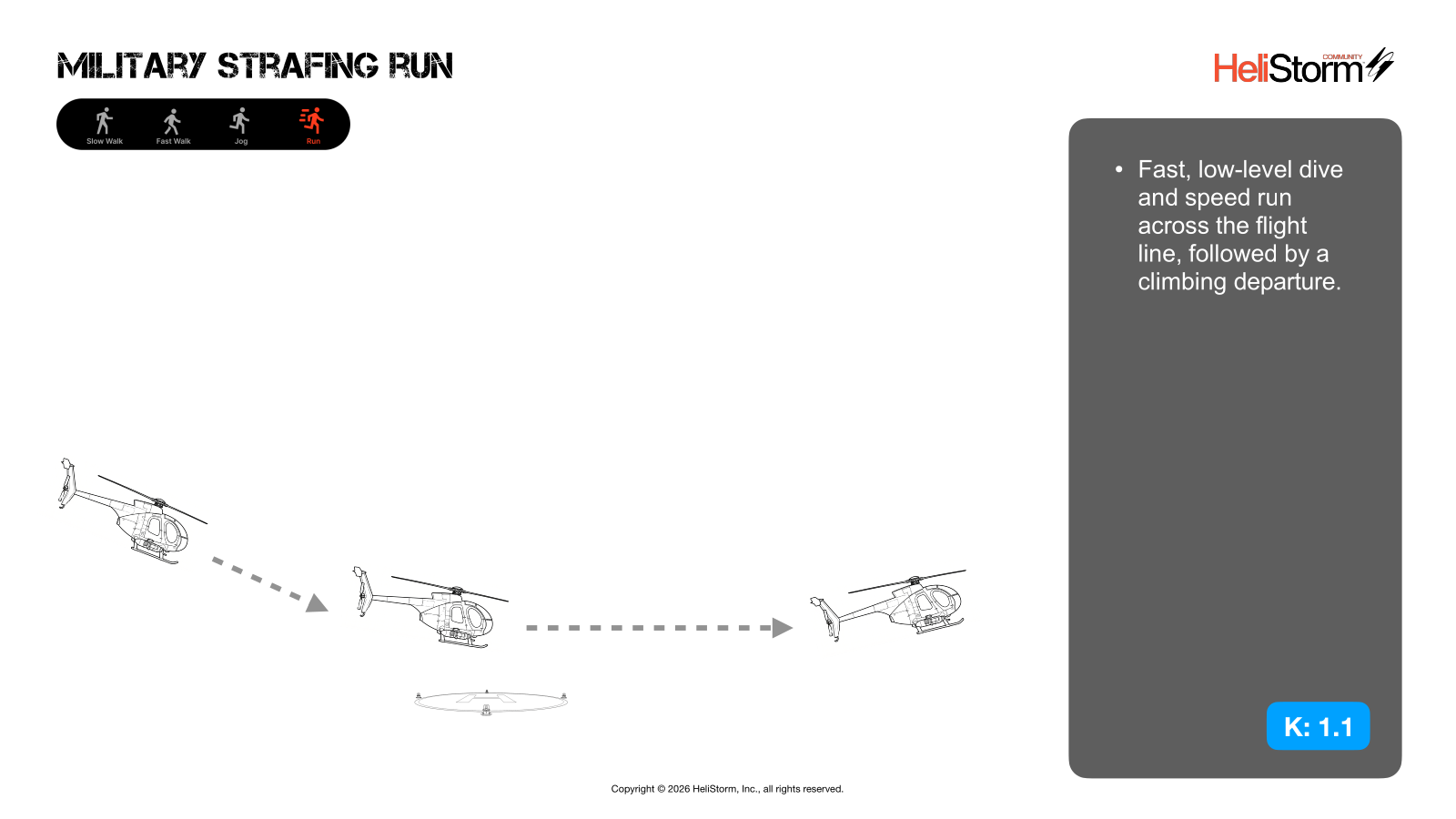

Military Strafing Run diagram

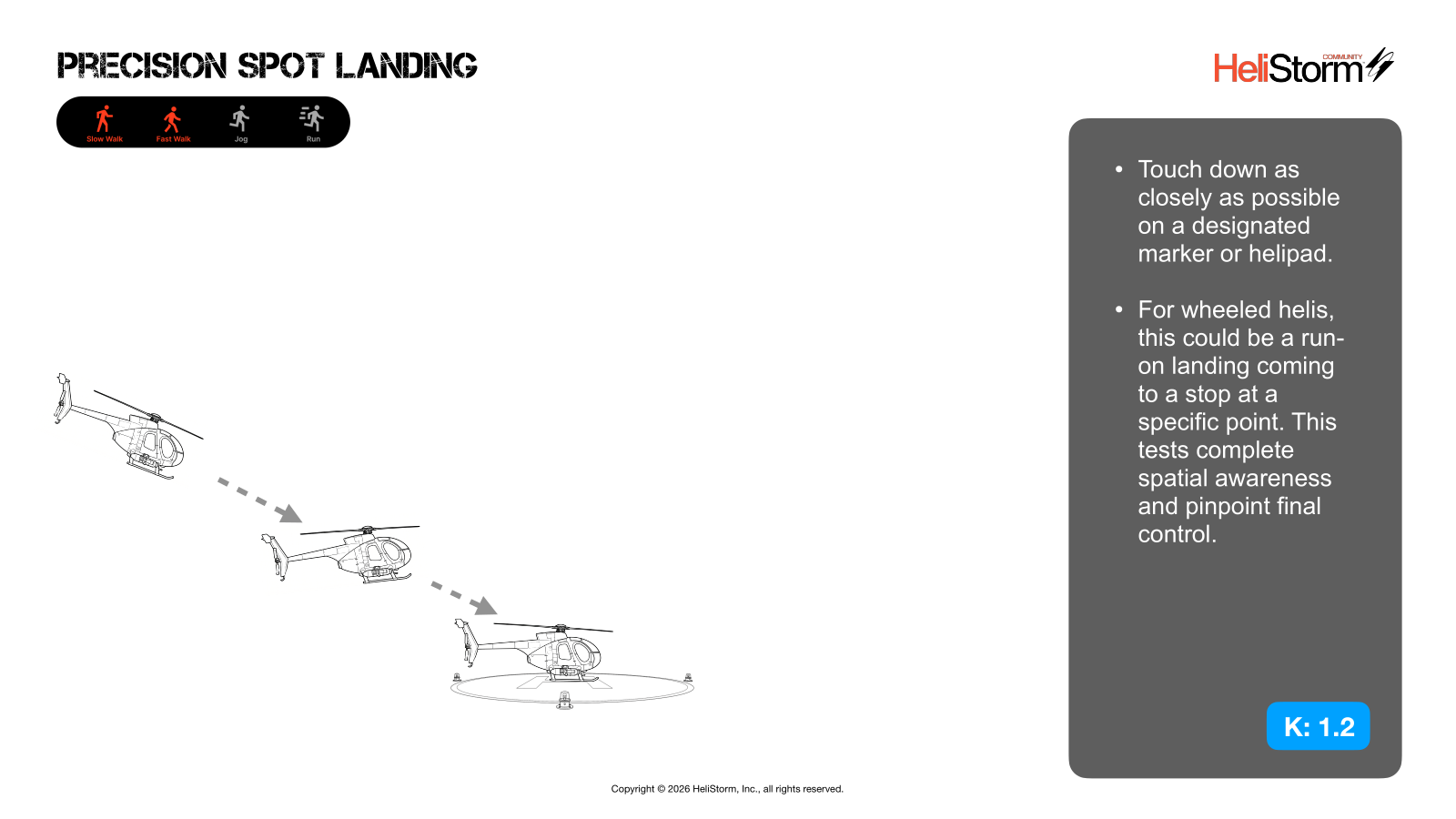

Precision Spot Landing diagram

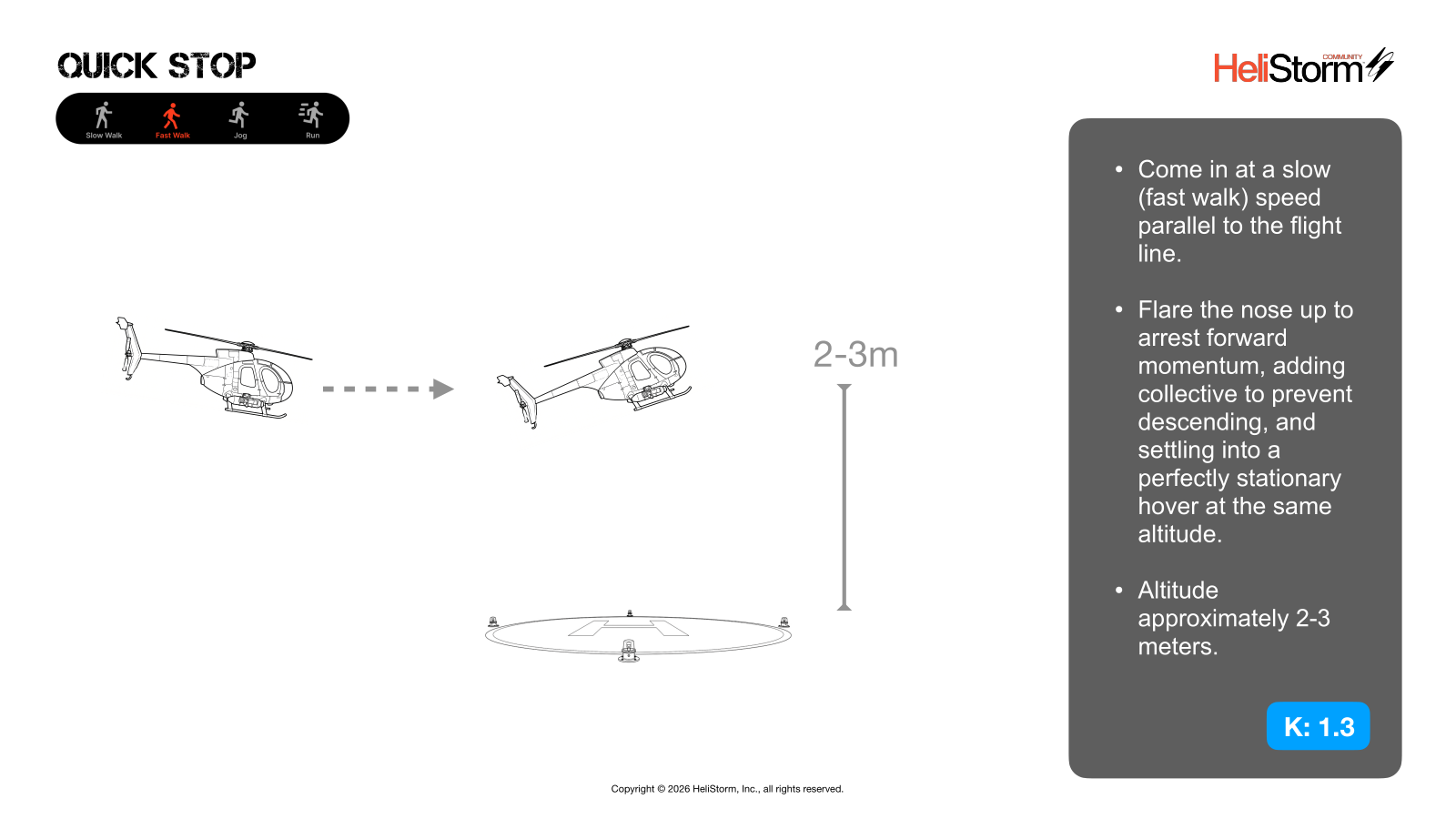

Quick Stop diagram

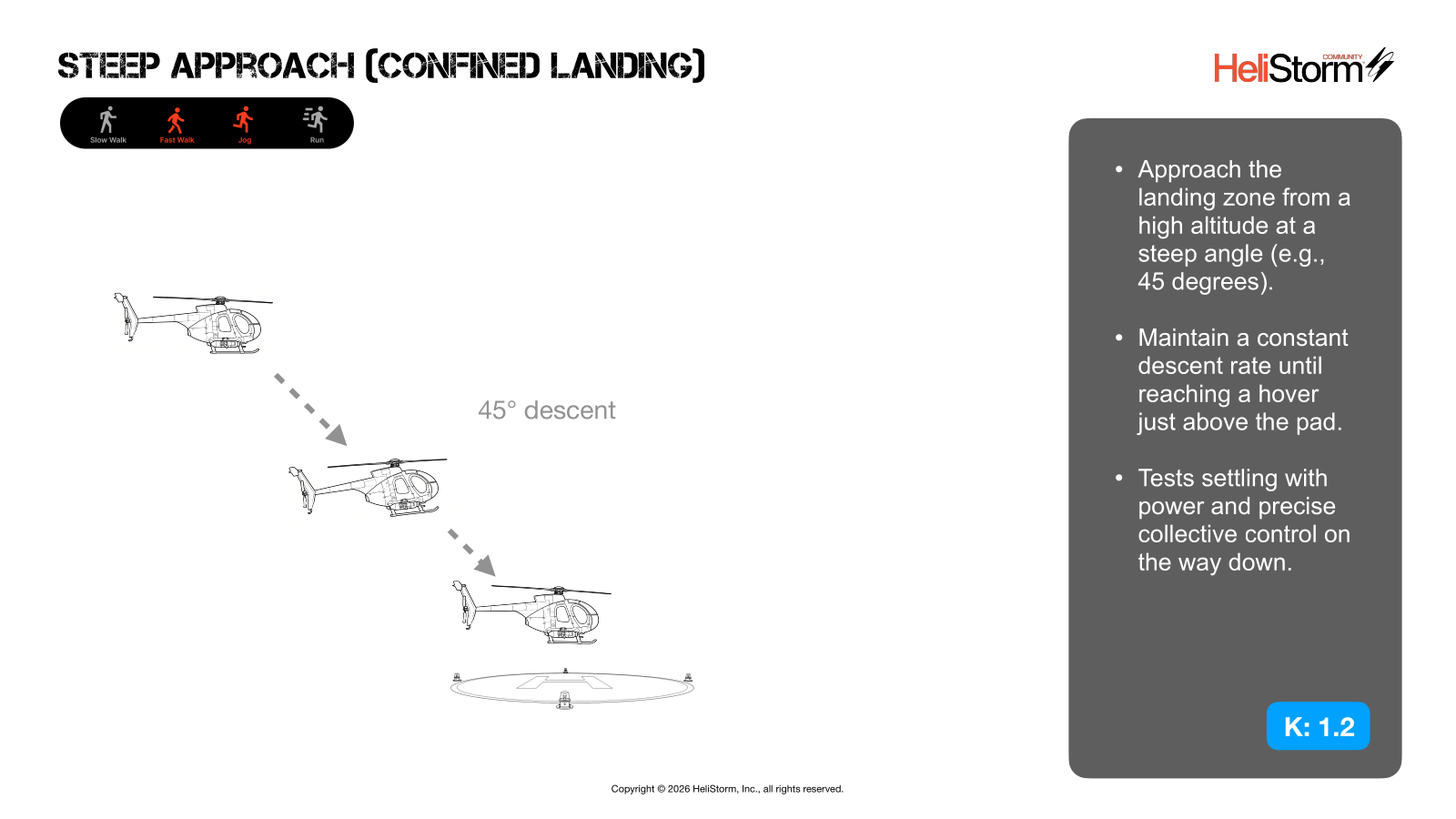

Steep Approach (Confined Landing) diagram

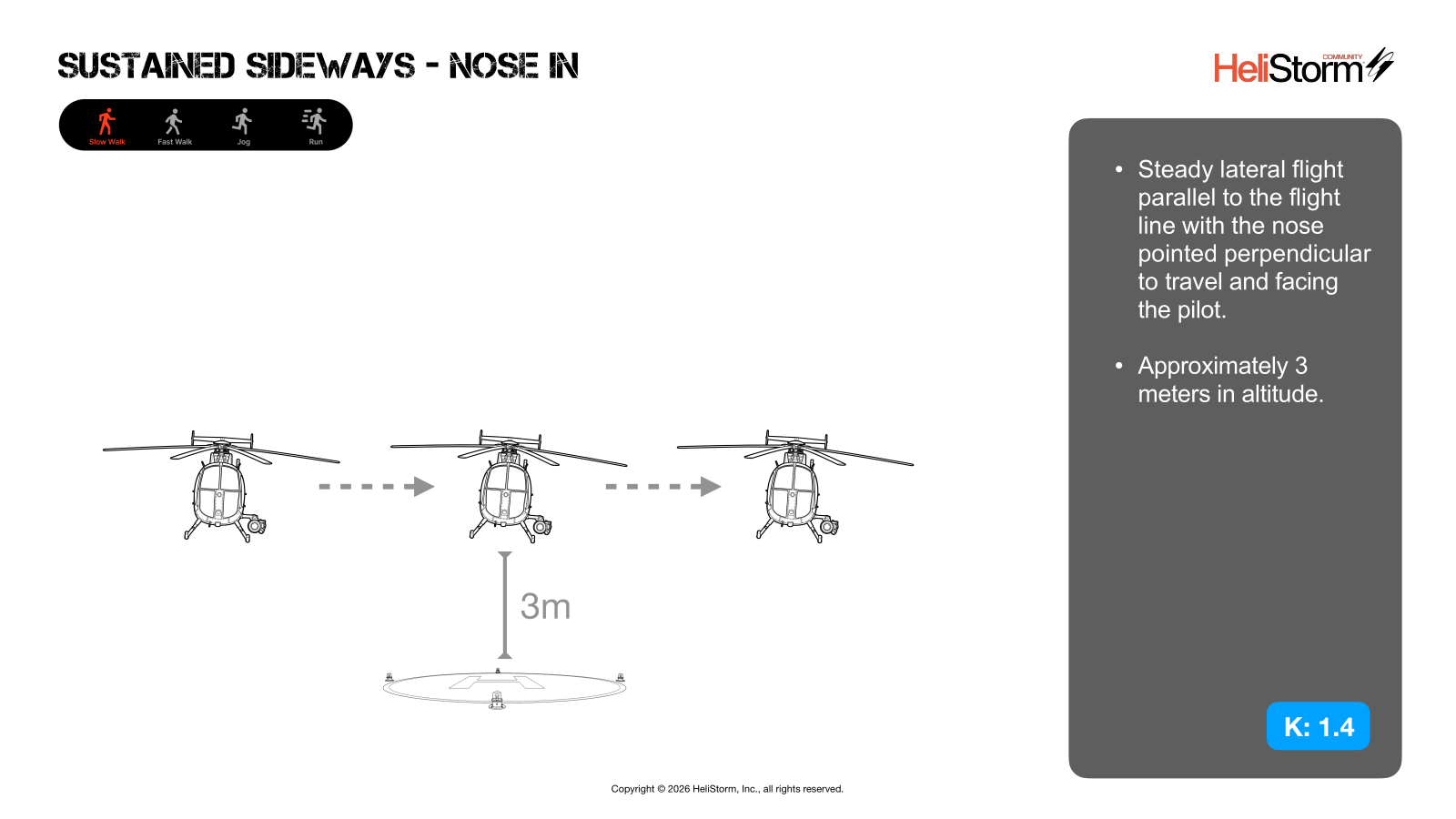

Sustained Sideways — Nose In diagram

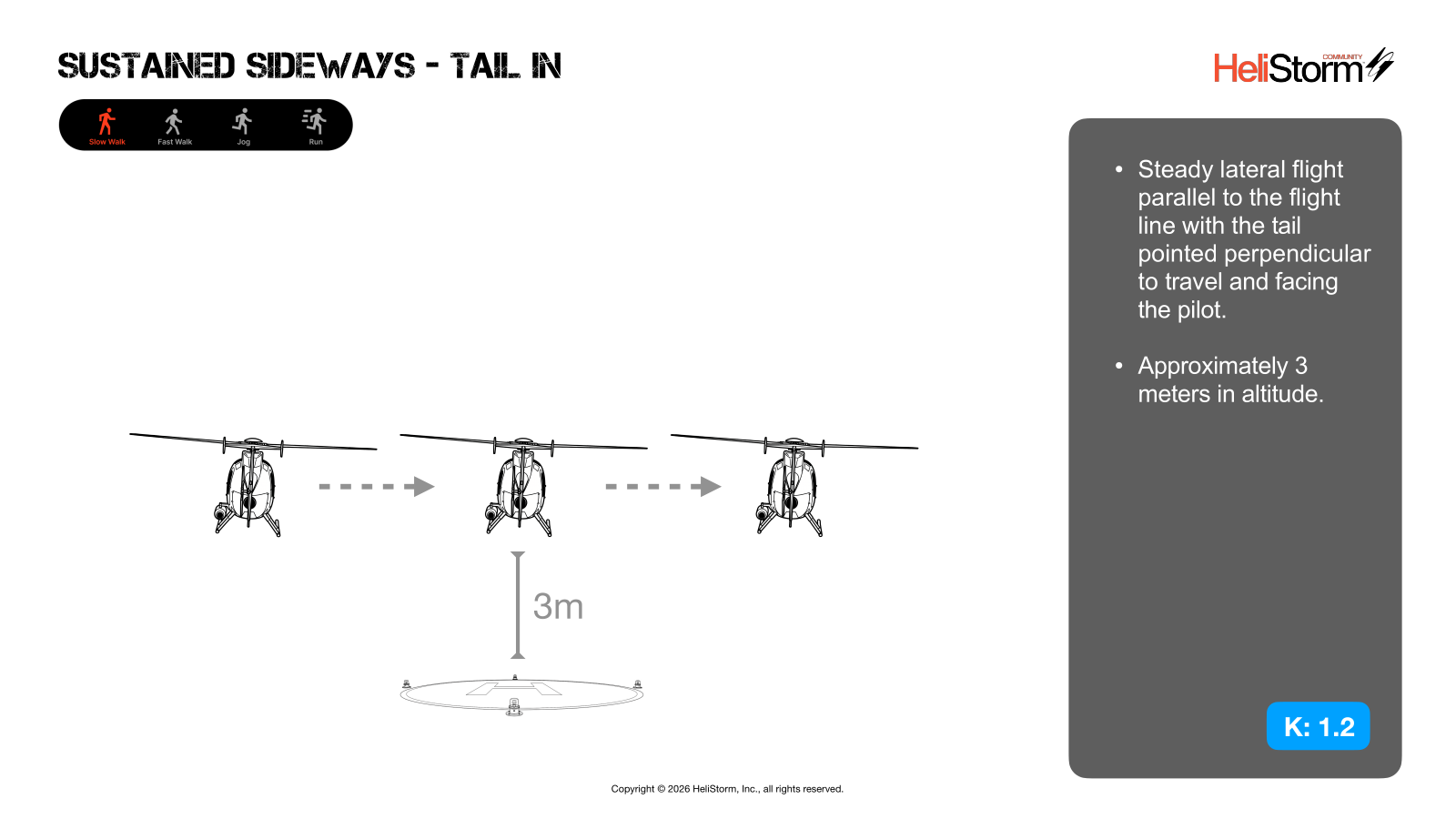

Sustained Sideways — Tail In diagram

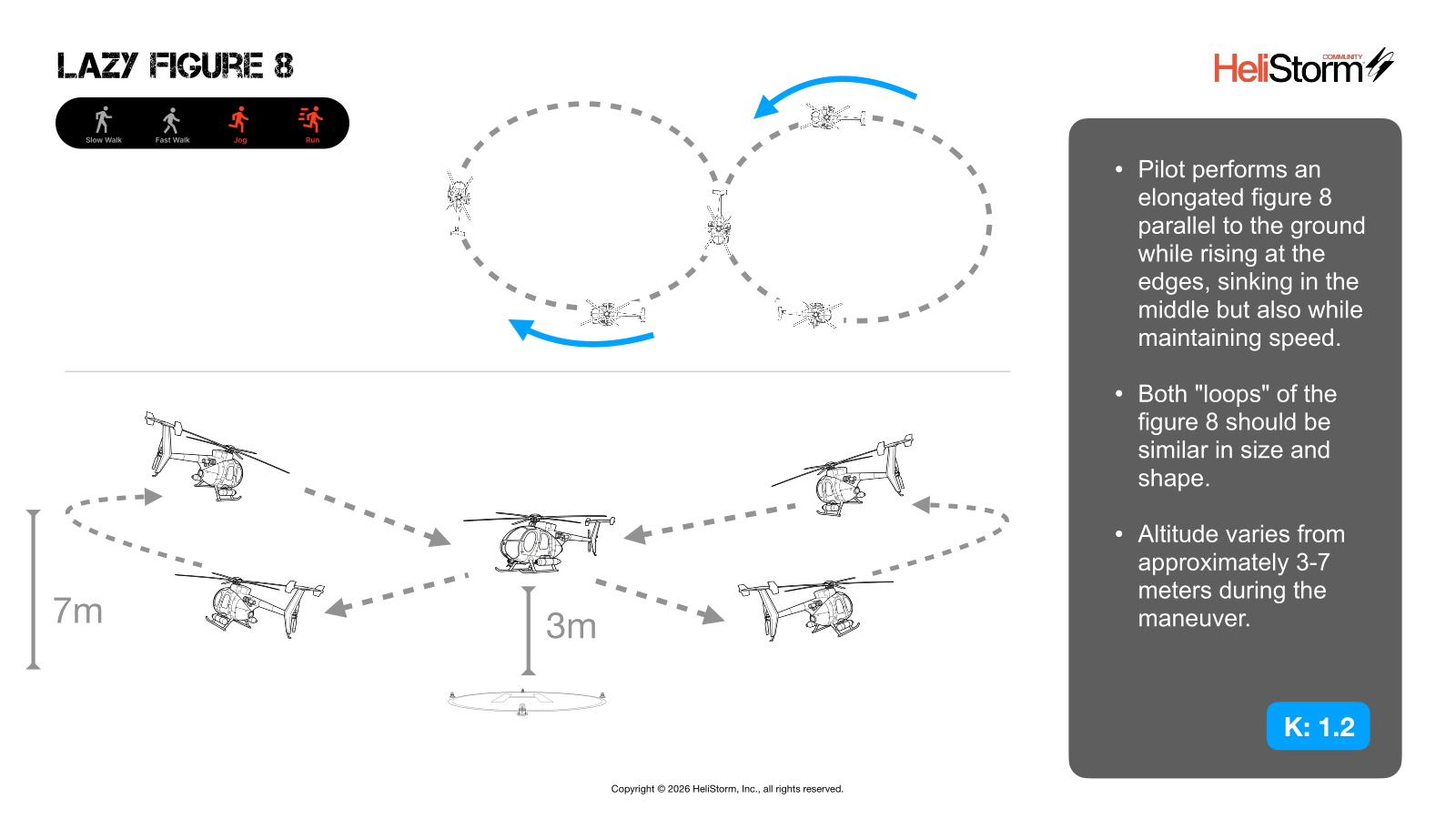

Lazy Figure 8 diagram

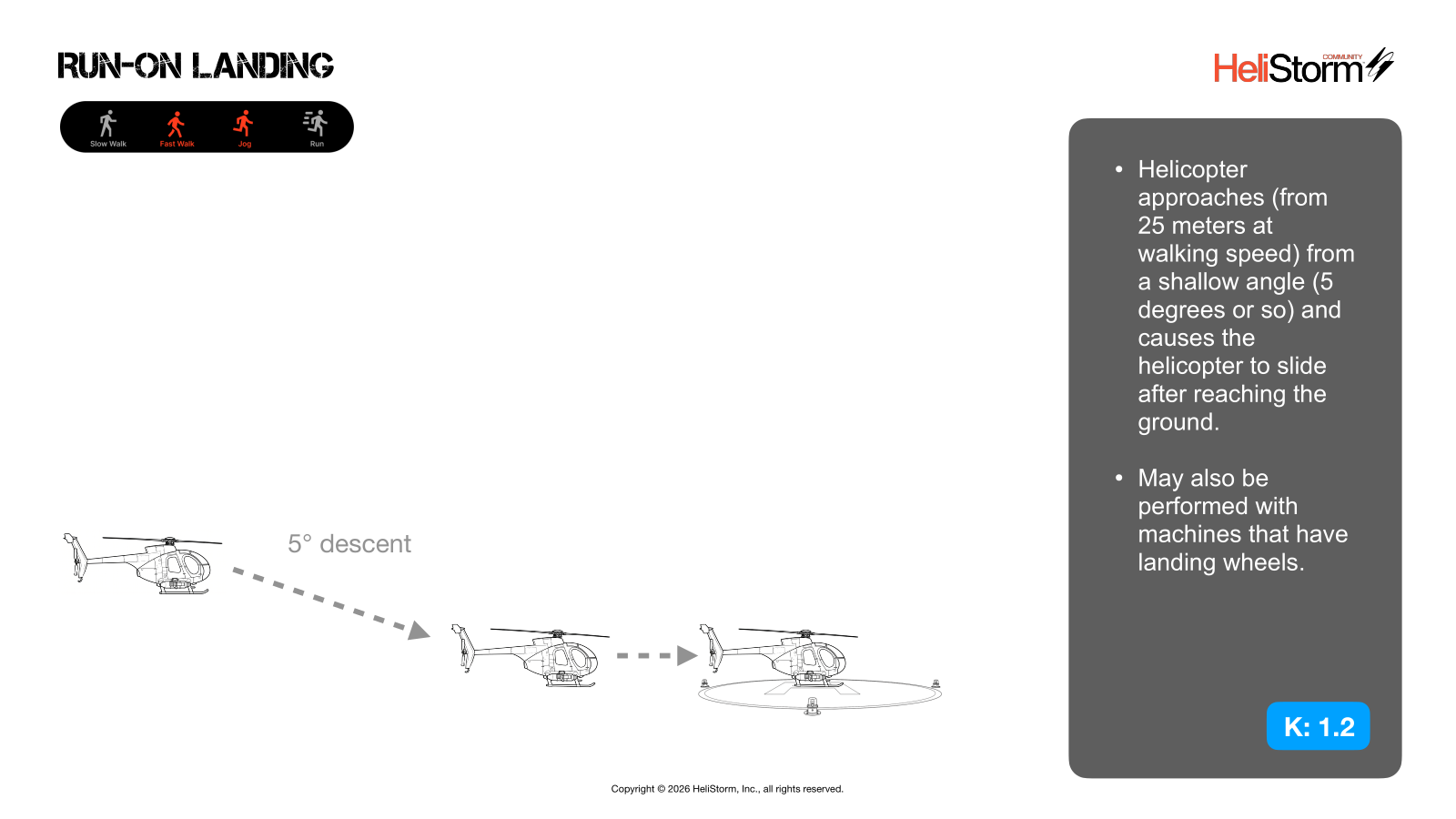

Run-On Landing diagram
Obstruction Takeoff diagram

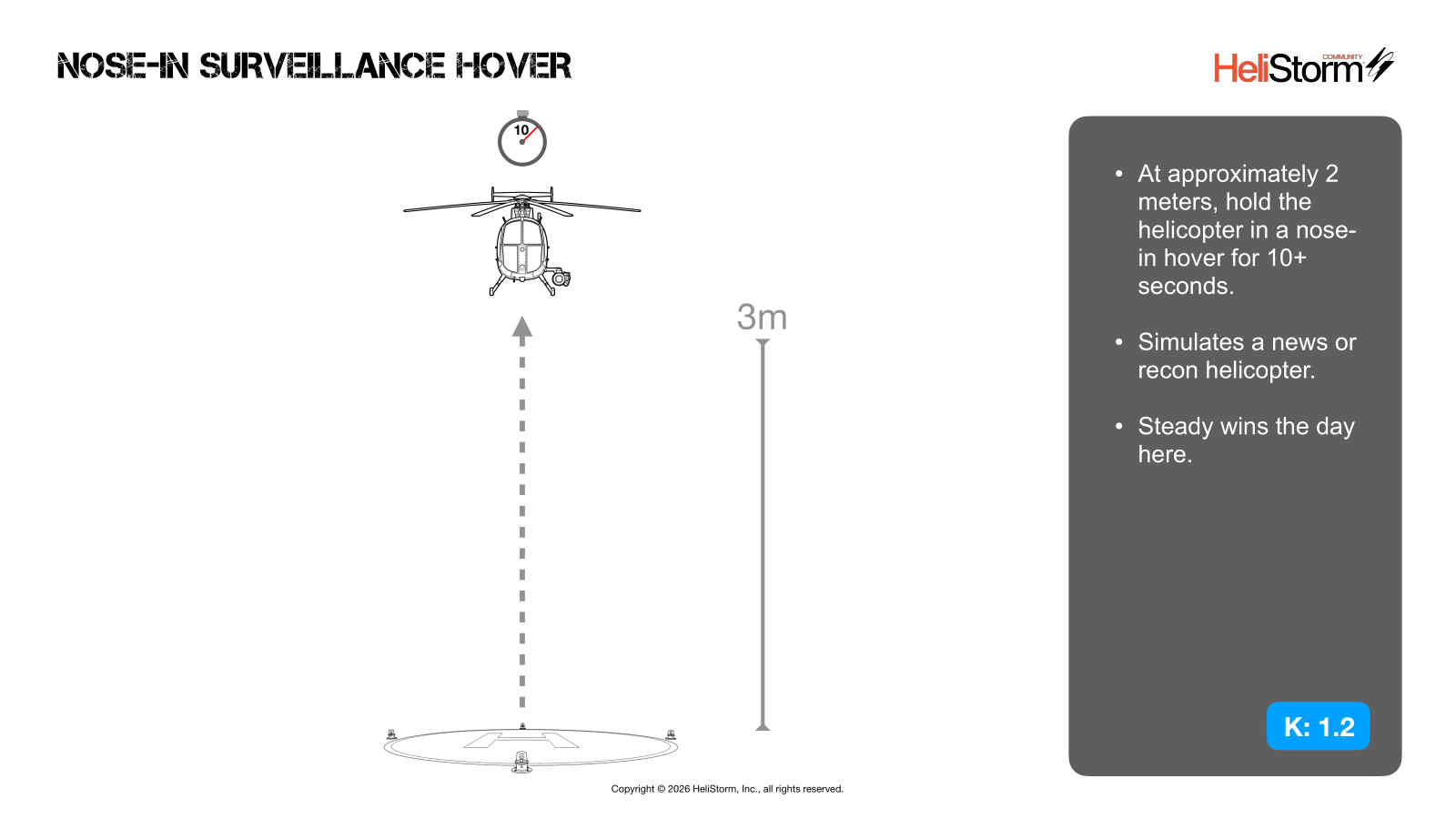

Nose-In Surveillance Hover diagram

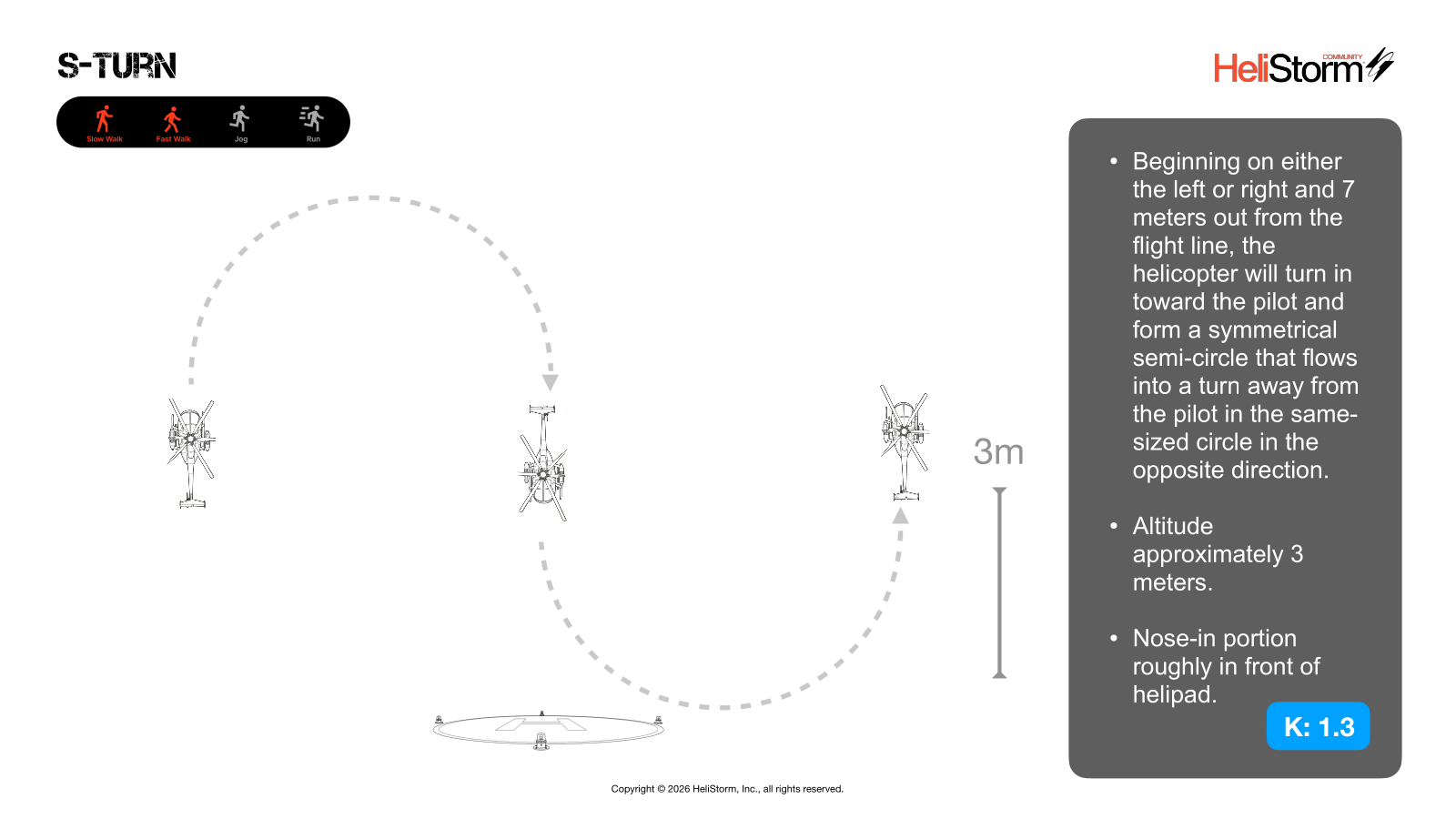

S-Turn diagram
The Bump diagram

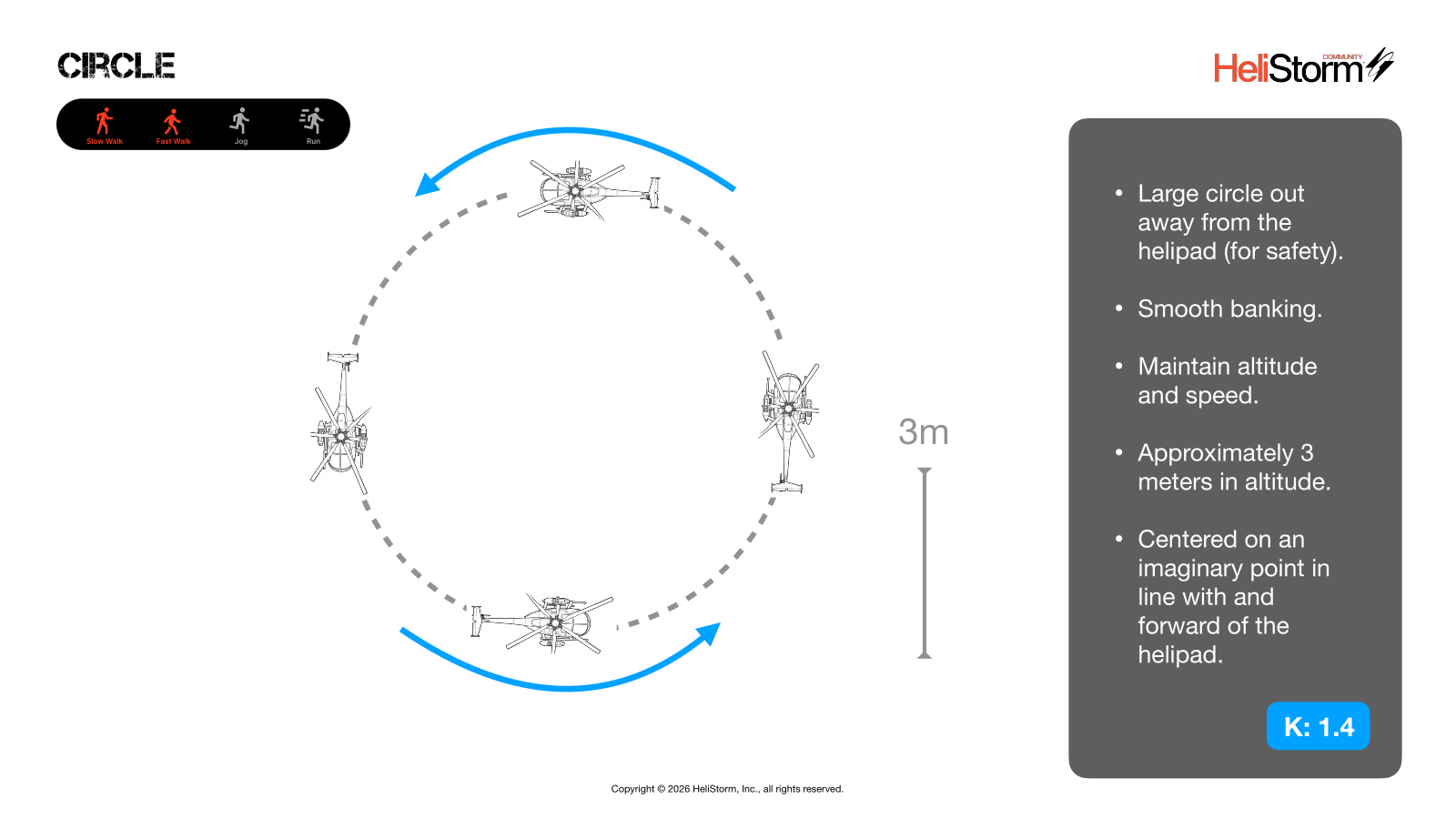

Circle diagram

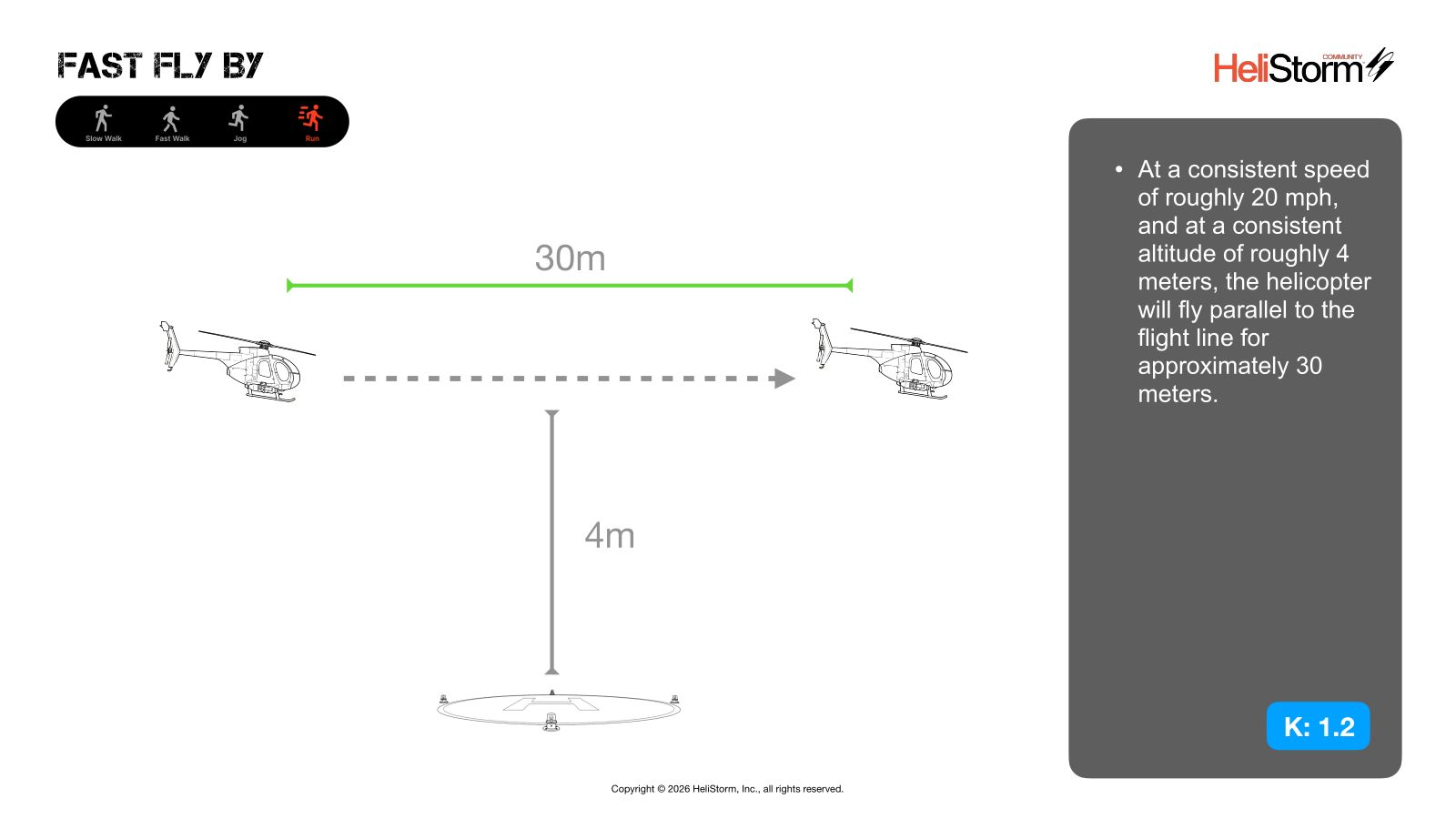

Fast Fly By diagram

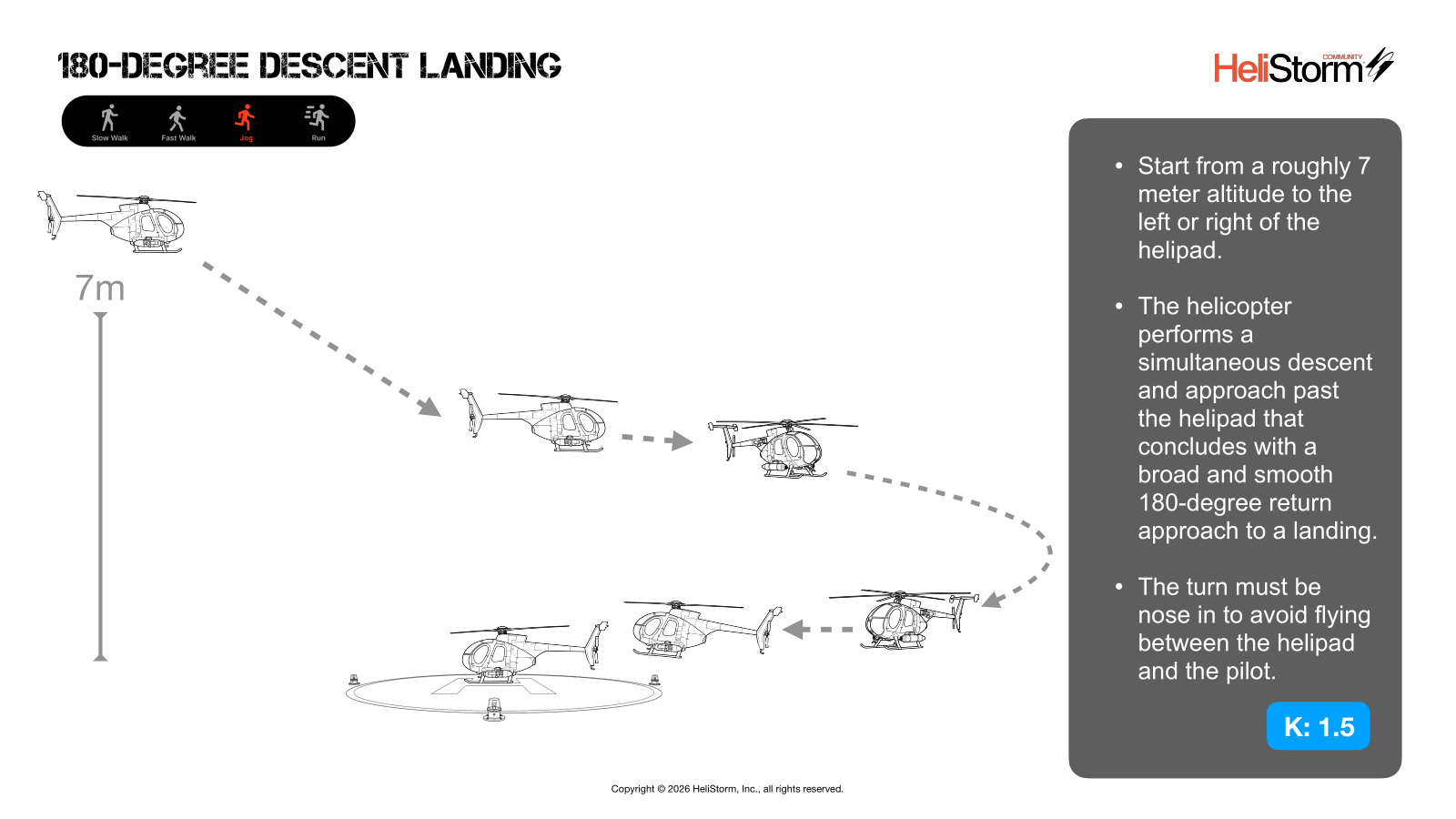

180-Degree Descent Landing diagram

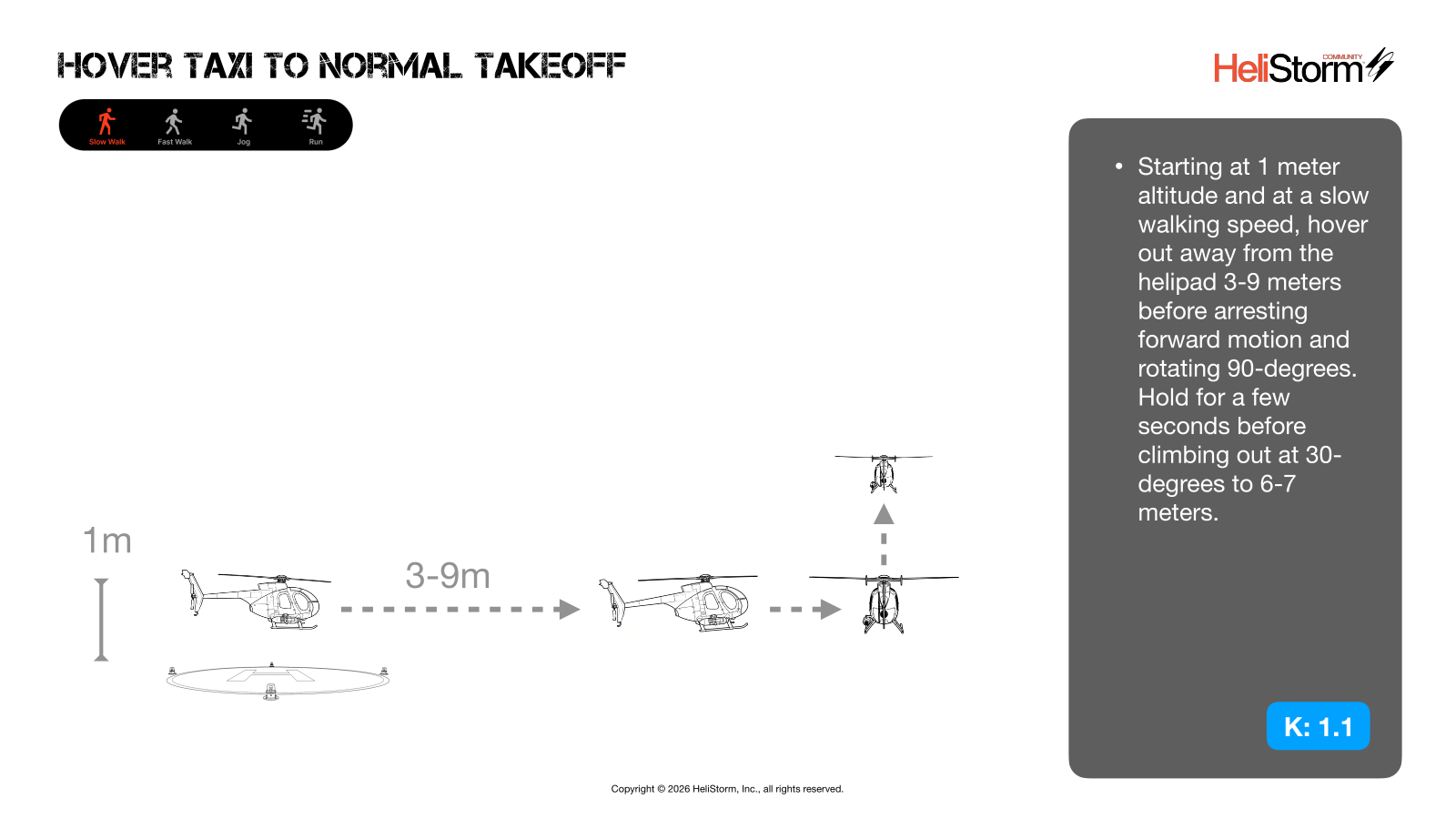

Hover Taxi to Normal Takeoff diagram

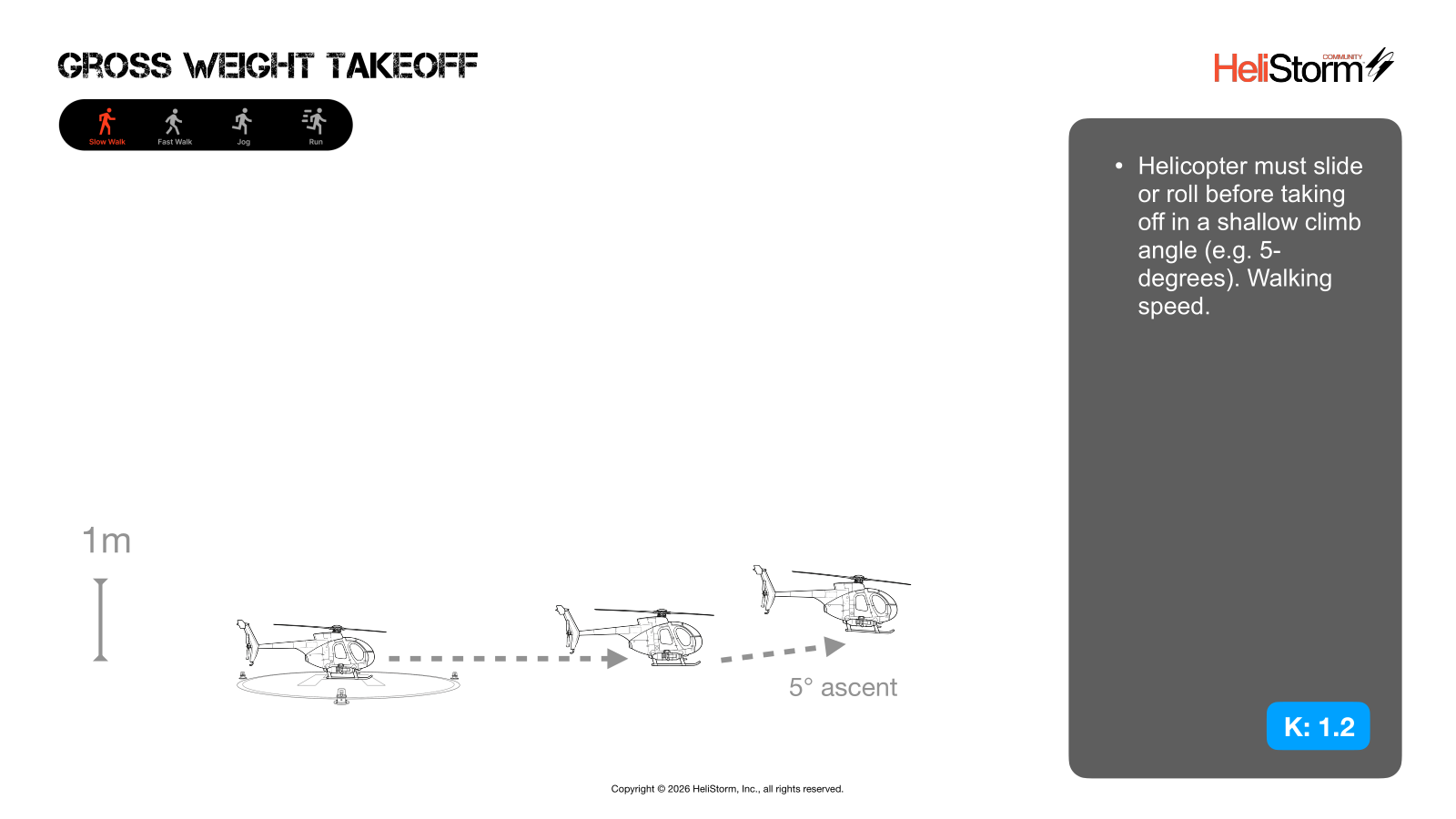

Gross Weight Takeoff diagram

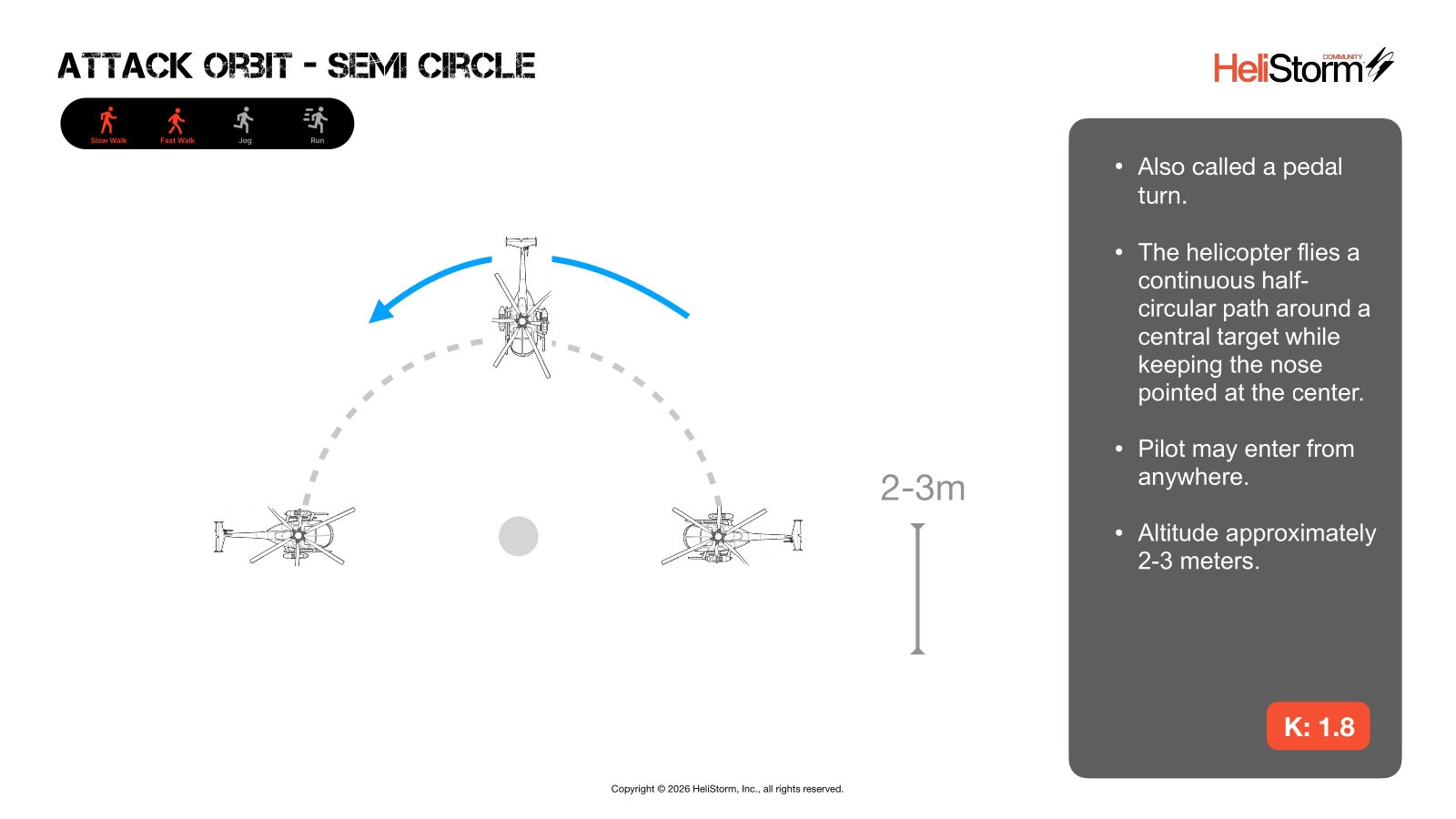

Attack Orbit — Semi Circle diagram

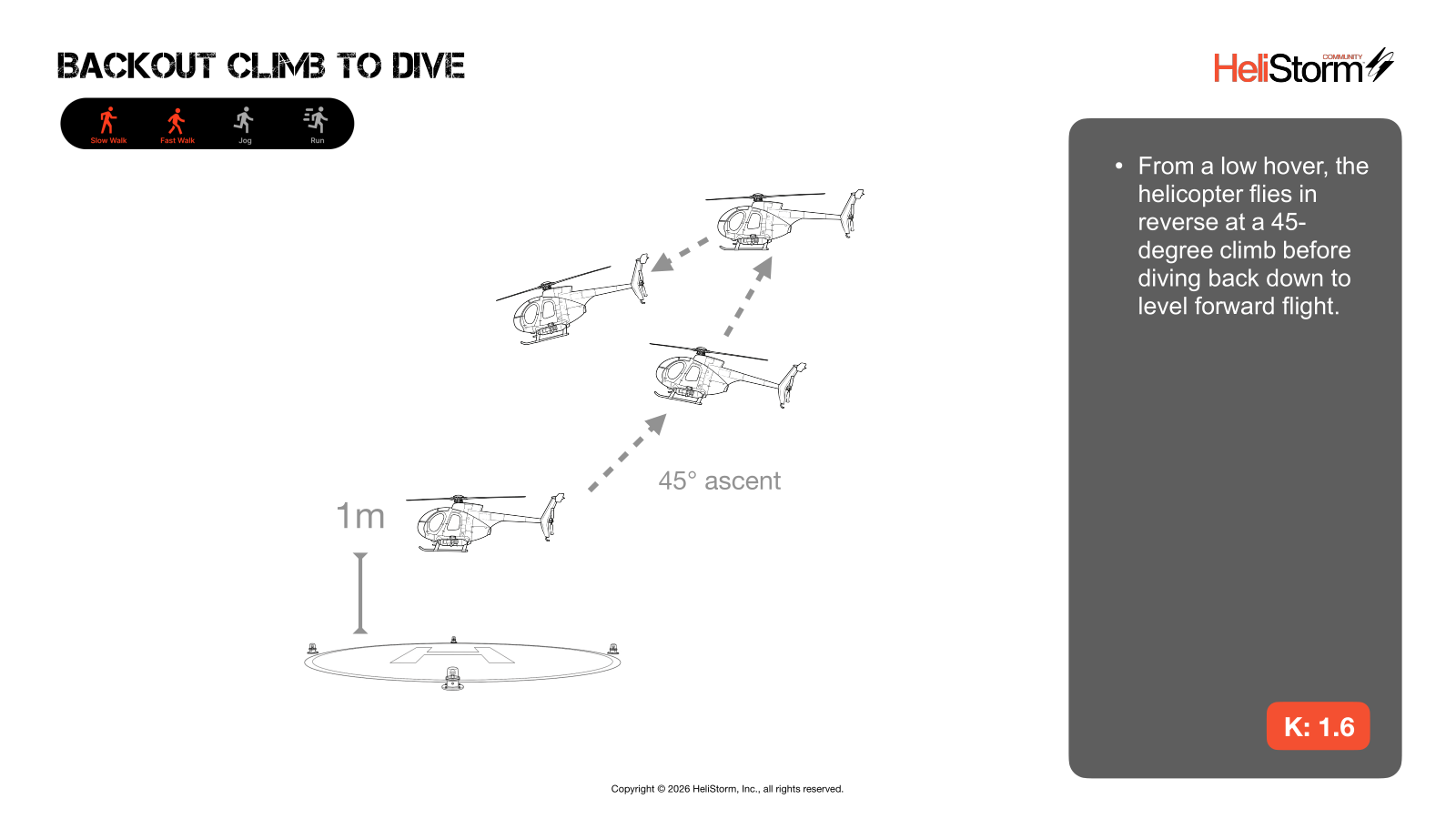

Backout Climb to Dive diagram

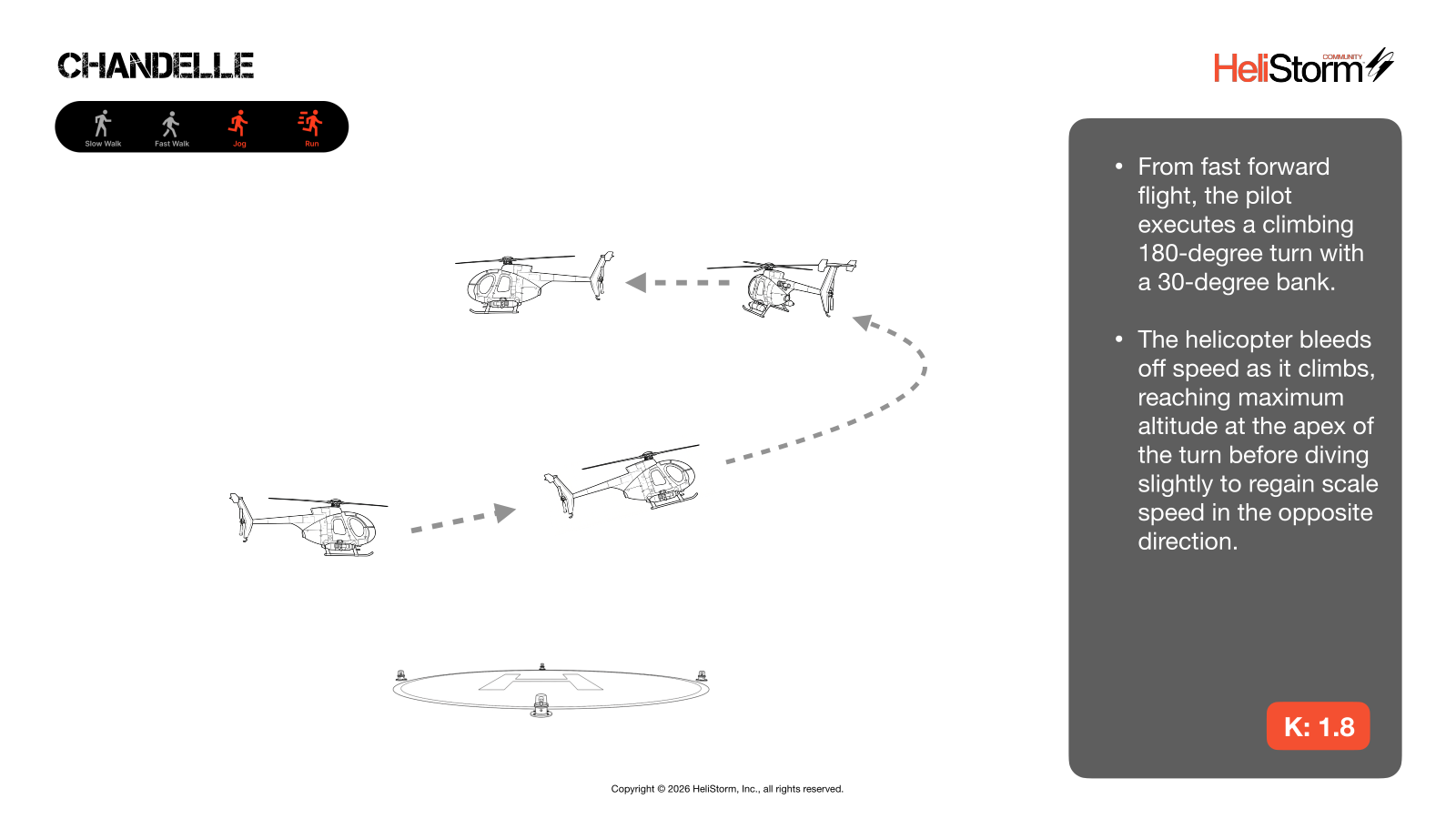

Chandelle diagram
Tear Drop Turn diagram

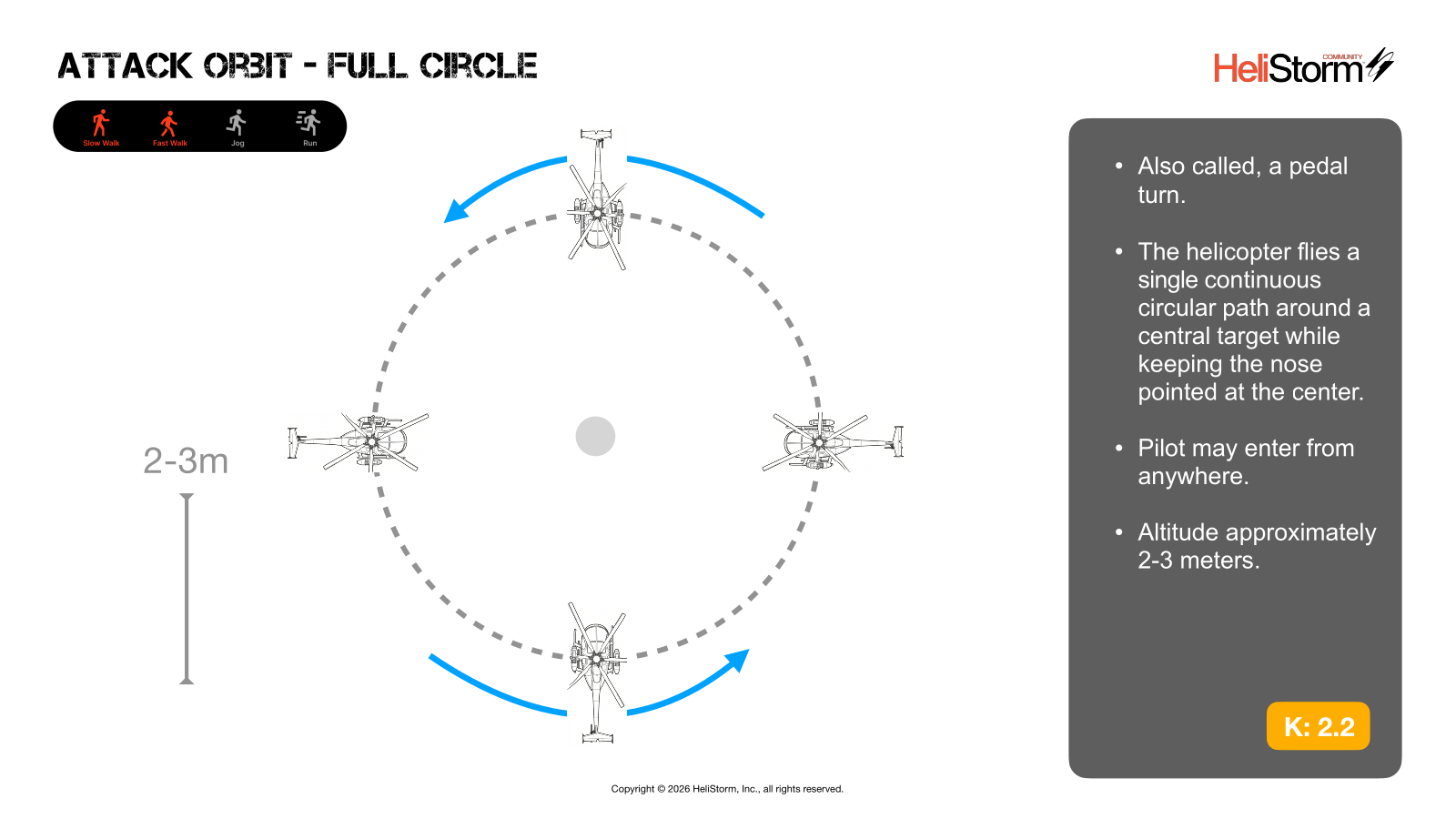

Attack Orbit — Full Circle diagram
Tactical Quick Stop diagram

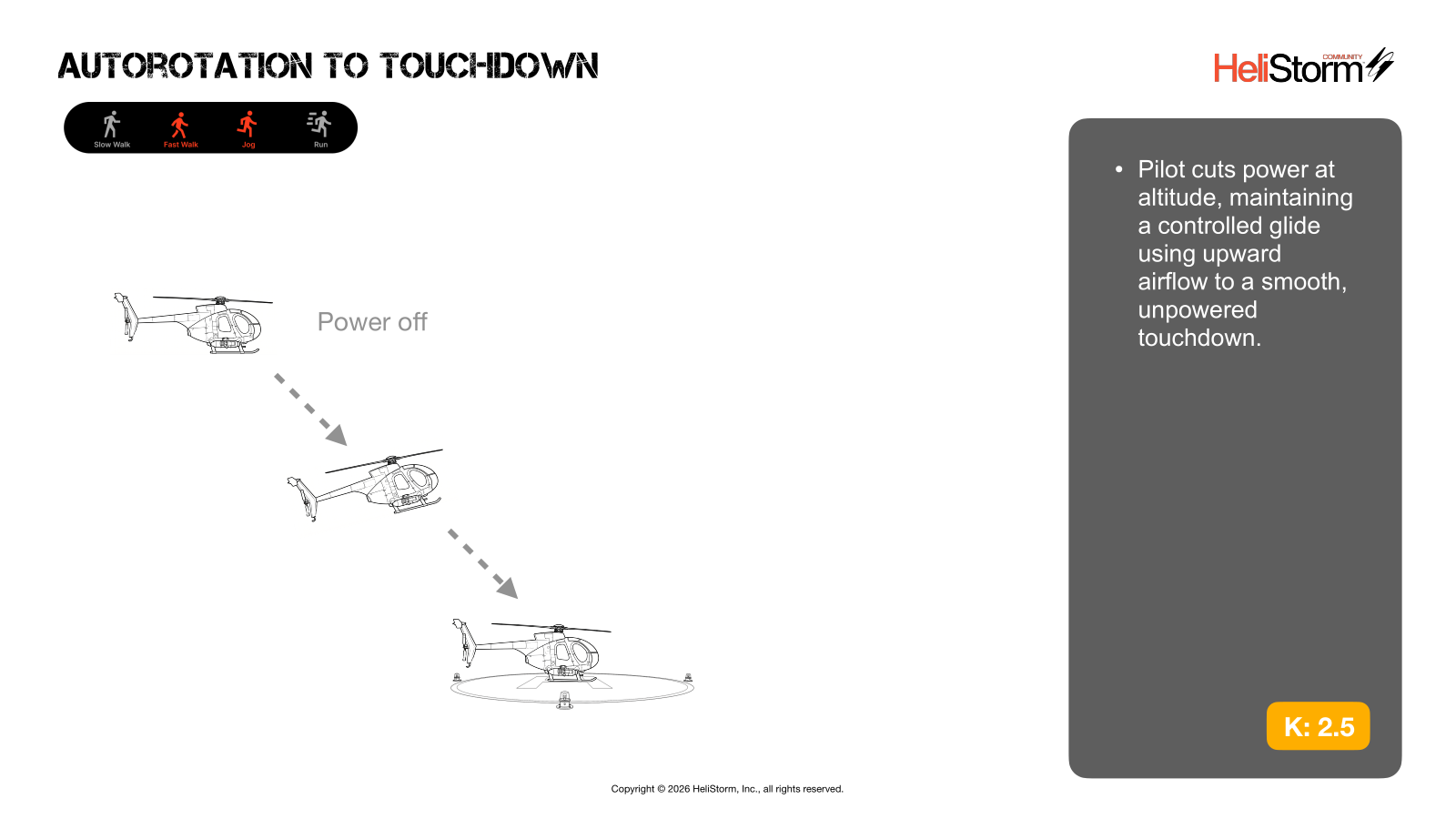

Autorotation to Touchdown diagram

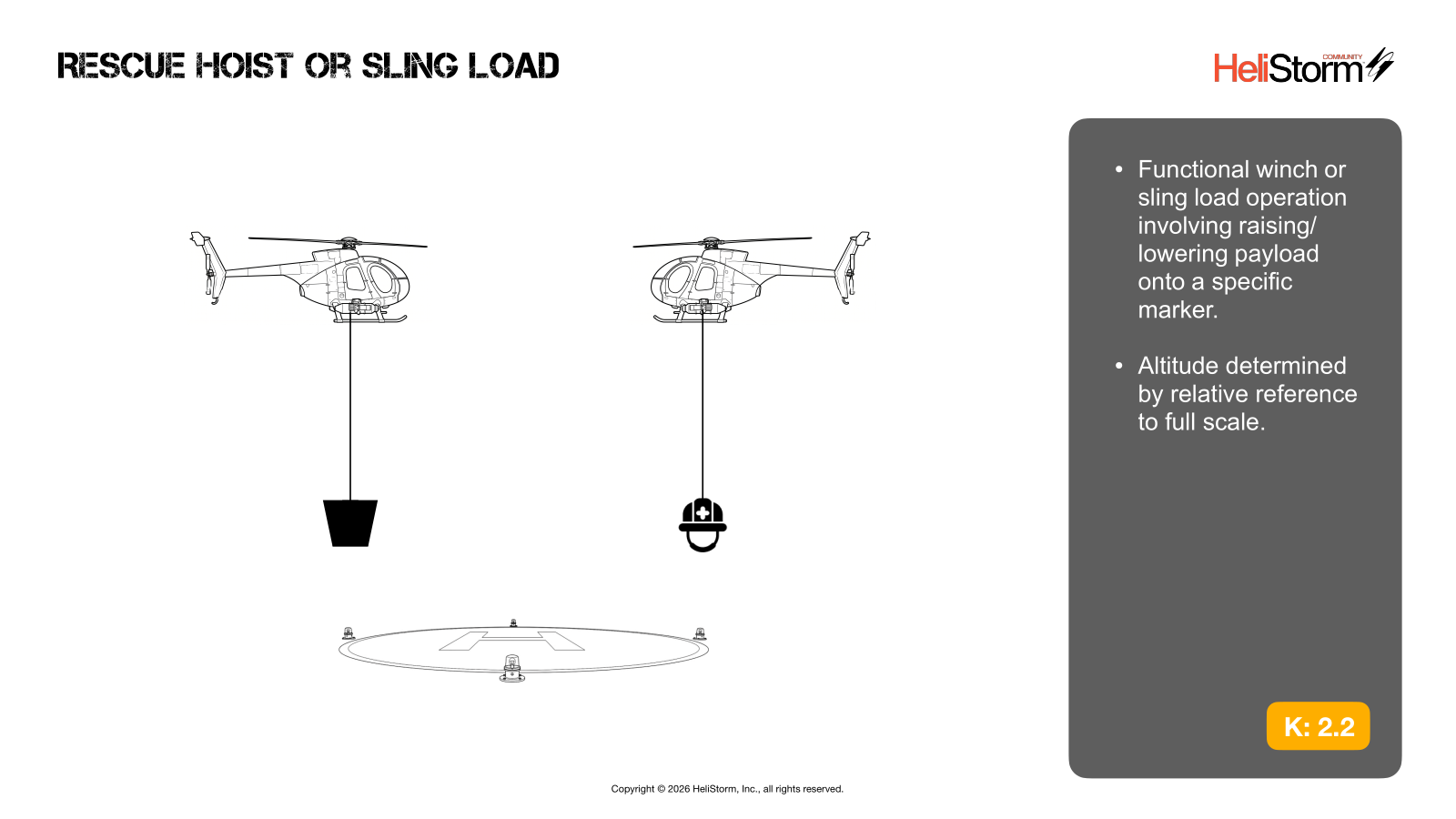

Rescue Hoist or Sling Load diagram

Full maneuver index

#ManeuverKDimension
1 Climbout & Hold 1.0 4m
2 Surveillance Hover 1.0 7m
3 Low & Slow Fly By 1.0 3m
4 Scale Liftoff & Hover 1.0 3m
5 Standard Traffic Pattern 1.0 —
6 Hovering Autorotation 1.0 1m
7 Simple Takeoff 1.0 7m
8 Low Approach Landing 1.0 25m
9 Vertical Takeoff & Transition to Forward Flight 1.1 —
10 Backout Turn 1.4 —
11 Constant-Altitude Figure 8 1.2 —
12 Hammerhead Stall Turn 1.2 —
13 Hover Across 1.3 7m
14 Hover Rotations 1.2 3m
15 Military Strafing Run 1.1 —
16 Precision Spot Landing 1.2 —
17 Quick Stop 1.3 3m
18 Steep Approach (Confined Landing) 1.2 —
19 Sustained Sideways — Nose In 1.4 3m
20 Sustained Sideways — Tail In 1.2 3m
21 Lazy Figure 8 1.2 3m / 7m
22 Run-On Landing 1.2 —
23 Obstruction Takeoff 1.5 1m / 3m
24 Nose-In Surveillance Hover 1.2 3m
25 S-Turn 1.3 3m
26 The Bump 1.2 2m / 4m
27 Circle 1.4 3m
28 Fast Fly By 1.2 4m / 30m
29 180-Degree Descent Landing 1.5 7m
30 Hover Taxi to Normal Takeoff 1.1 1m / 9m
31 Gross Weight Takeoff 1.2 1m
32 Attack Orbit — Semi Circle 1.8 3m
33 Backout Climb to Dive 1.6 1m
34 Chandelle 1.8 —
35 Tear Drop Turn 1.7 2m / 3m
36 Attack Orbit — Full Circle 2.2 3m
37 Tactical Quick Stop 2.0 3m
38 Autorotation to Touchdown 2.5 —
39 Rescue Hoist or Sling Load 2.2 —
